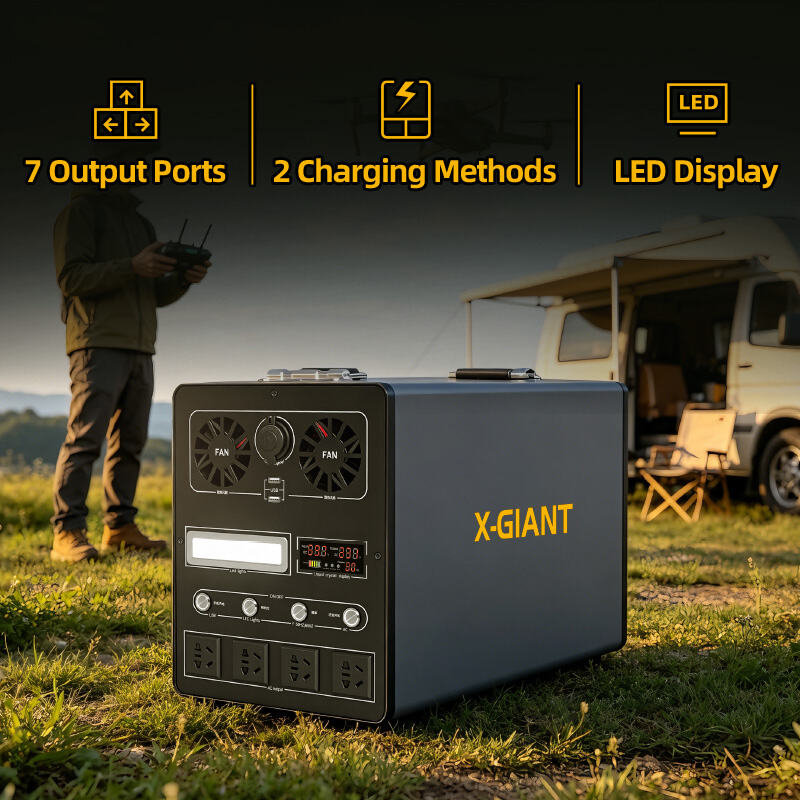

1.9kWh Small Portable Power Station

Tags:

Description


Introduction

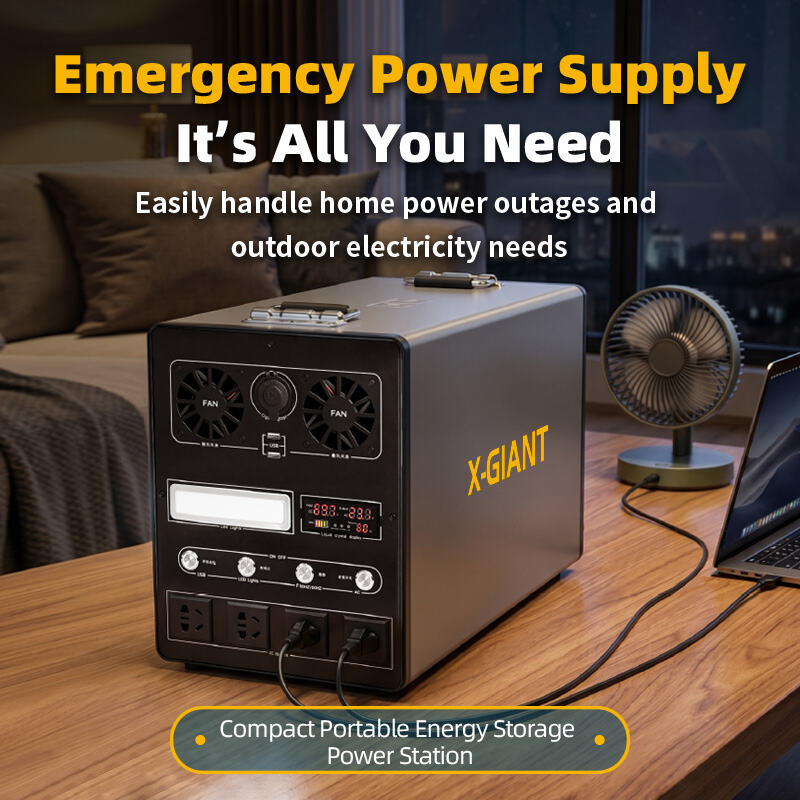

Portable Energy Storage Power Supply

Effortlessly manage lighting and basic power supply during temporary household power outages,while providing continuous energy support for outdoor camping and long-distance self-driving trips, eliminating 'battery anxiety' during leisure activities.

Lithium Iron Phosphate Battery

The built-in power-grade lithium iron phosphate battery delivers not only its advertised high capacity but also ensures peace of mind with exceptional longevity and multiple safety protections.

Multi-Type Output Ports

Equipped with multiple output ports,it fully supports various electronic devices including lighting systems, smartphones, and laptops. This all-inone solution meets diverse household power needs illuminating every vibrant moment of life with reliable performance.

Application scenarios

Home emergency backup power
Self-driving travel
Camp
Outdoor photography

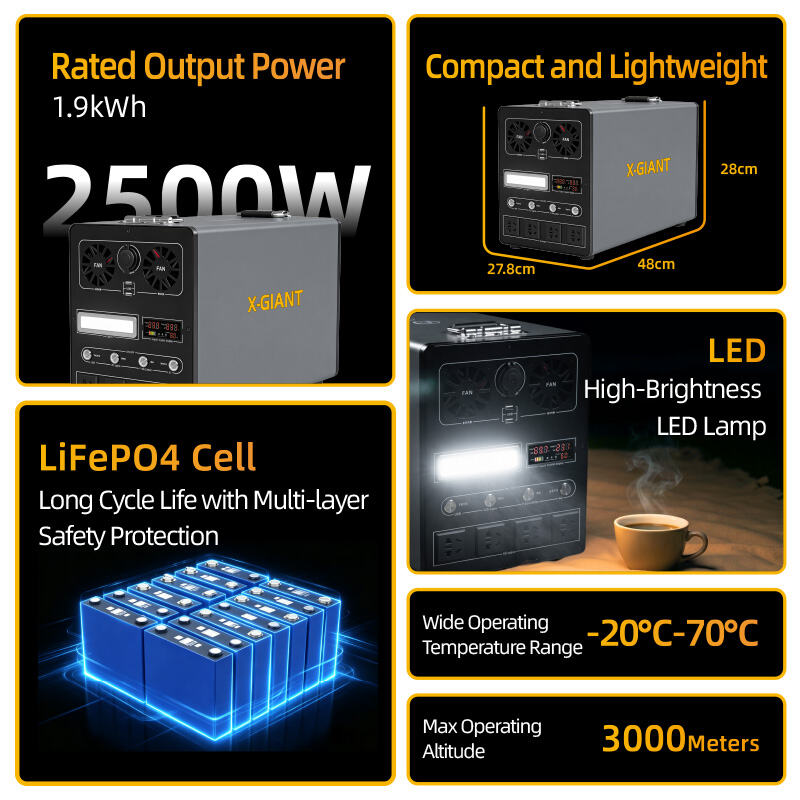

Performance Features

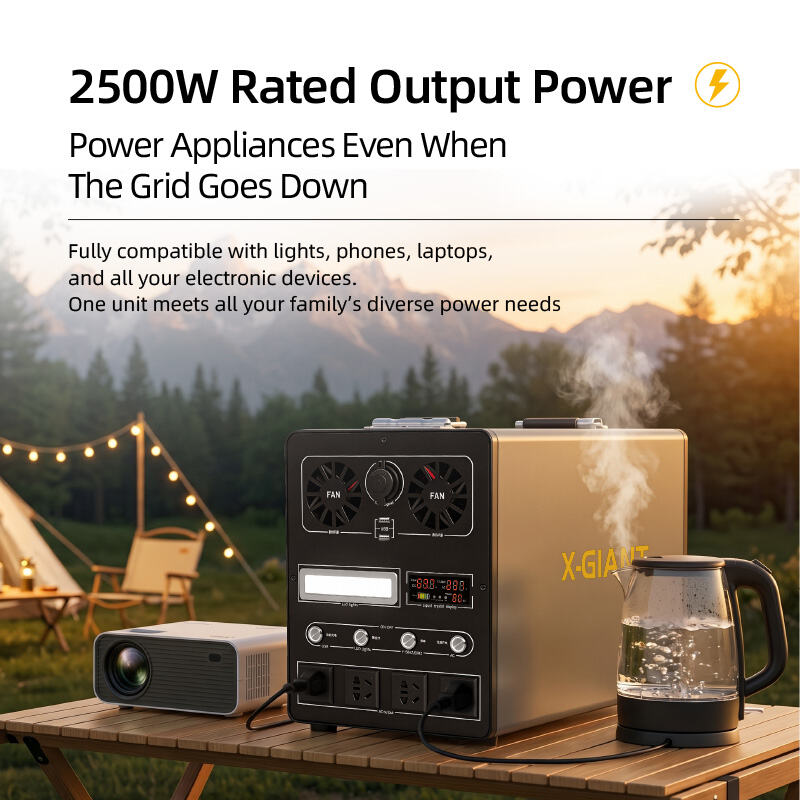

A 2500W high-power, multifunctional portable mini power station that can meet the needs of multiple devices with a single unit.

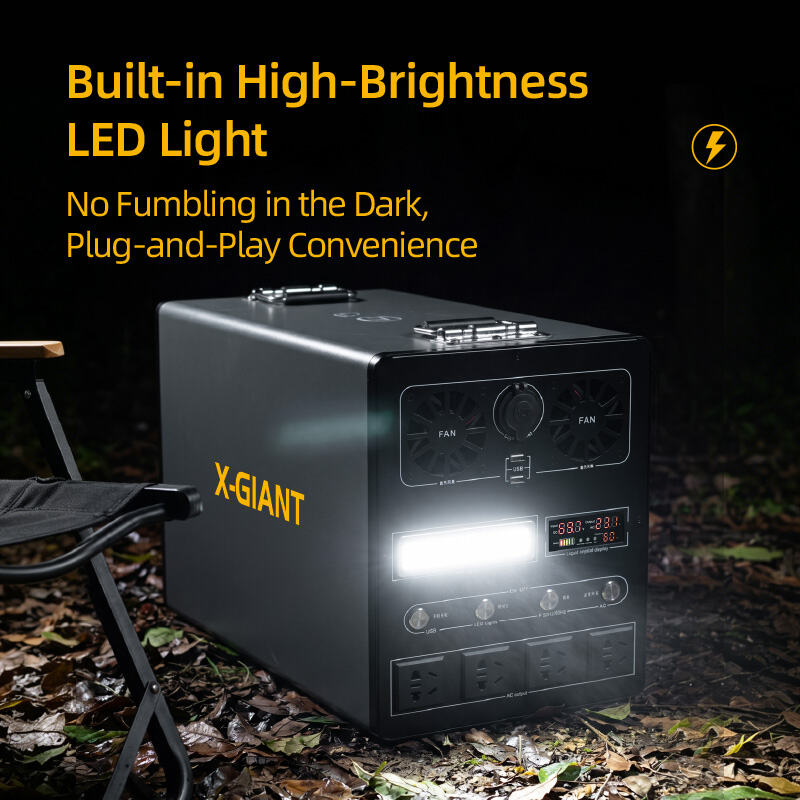

Configure LED lighting fixtures to meet high-brightness illumination requirements.
Unfazed by bumps, safe for outdoor use.
Compact and lightweight, it can be carried with one hand,offering high efficiency and stable performance.
This power supply is equipped with high-quality lithium iron phosphate batteries for extended battery life.
The intelligent color screen displays the system's operational status accurately.
Temperature sensing, intelligent active cooling.

Feature Introduction

1、Cooling Fan

2、Cigarette Lighter

3、 LCD Smart Display Screen

4、 AC Switch

5、 50Hz/60Hz Frequency Switch

6、AC 210V~230V Output Port

7、 LED Switch

8、 USB Switch

9、LED Light

10、 USB Output Interface

11、DC Charging Interface

Specifications

Export technical parameters and configurations
Power rating	2500W
Alternating voltage	220Vac/110Vac
Wave form	Pure sine wave
Thermal Heterodyne Distortion (THD)	≤5%（linear load）
Frequency	50Hz/60Hz
Frequency range	±0.5
Continuous output	2000W（resistive load）
Peak power	3000W
LED display screen	1（Displays battery voltage/battery level AC output/waveform/output power load power/inverter temperature/fan）
AC universal socket	4units（150V~220V，50Hz/60Hz）
USB/TYPE-C	Two units each（default output: 5V 1.5A 7W; maximum output: 20V 1.3A 30W）
Control switch	4（LED switch/USB switch/AC main switch）

Enter technical parameters
Cell voltage	64V
Rated Capacity	30AH
Rated Energy	1920wh
Battery low voltage alarm	56V
Battery Low High Voltage Protection	50V/75V

Output protection
High-temperature protection	≥70℃， turn off the output
Output short circuit	Automatic recovery for short and light circuits; output shutdown if circuit duration exceeds 3 seconds
Overload protection	Auto shutdown

Other parameters
Protect	Low voltage, overvoltage, overheating, overload, and short-circuit protection
Working temperature	-20℃~70℃
Working humidity	10~90%RH
Storage temperature	-40℃~60℃
Storage humidity	10~95%RH
Use altitude	≤3000(above 1000 meters, reduced usage）
Battery compartment size	Length 350mm / Width 225mm / Height 162mm
Product size	480mm long / 278mm wide / 280mm high

Enter technical parameters
DC charging interface	2 units (Model: XT90E-M, excluding charger) 45A
Static current in shutdown mode	≤30uA
Fan operating mode	Intelligent temperature control, fan starts ≥33℃, stops ≤31℃
Radiator fan	4个(7025)
Positive and negative terminal connections	Screw tightening and fixation
