mn h92 side load garbage vehicle-0

Garbage Truck

Home >  Products >  Garbage Truck

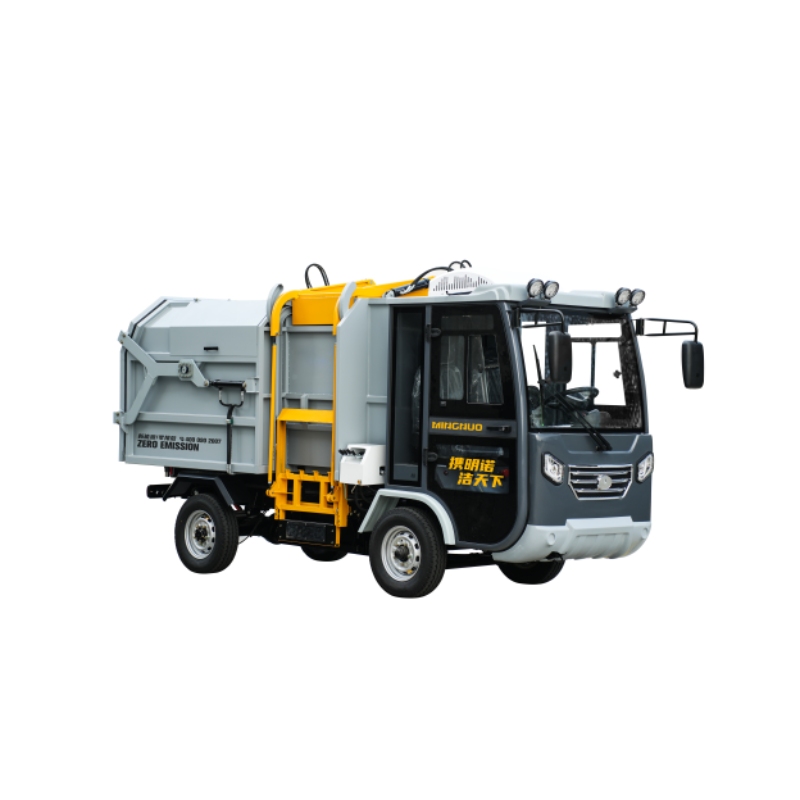

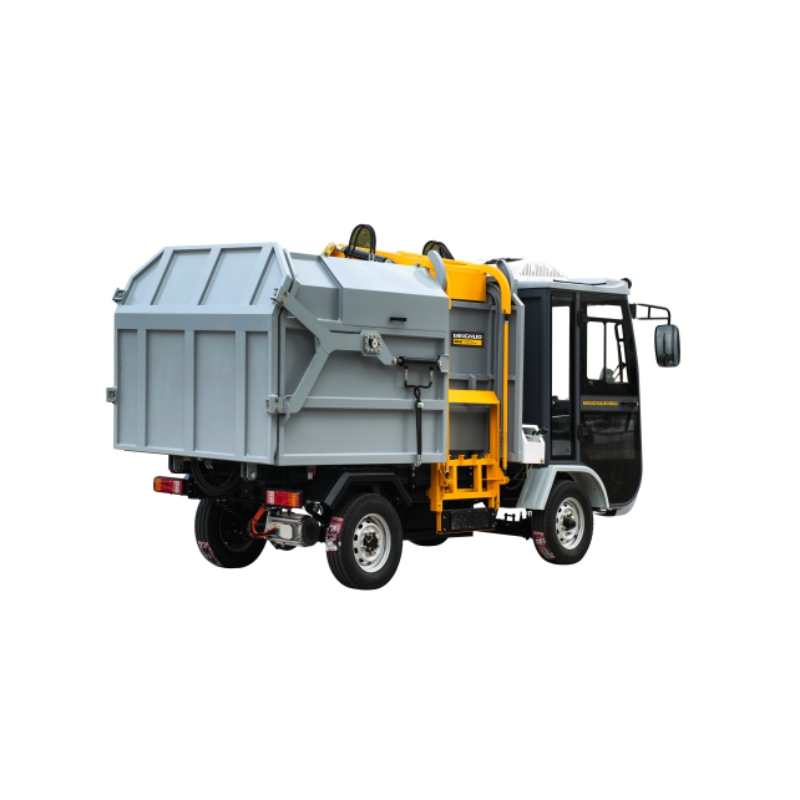

MN-H92 Side-load Garbage Vehicle
MN-H92 Side-load Garbage Vehicle
MN-H92 Side-load Garbage Vehicle
MN-H92 Side-load Garbage Vehicle
MN-H92 Side-load Garbage Vehicle
MN-H92 Side-load Garbage Vehicle
MN-H92 Side-load Garbage Vehicle
MN-H92 Side-load Garbage Vehicle
MN-H92 Side-load Garbage Vehicle
MN-H92 Side-load Garbage Vehicle

MN-H92 Side-load Garbage Vehicle

  • Product Size: 4260*1500*2180mm
  • Product Weight: 2180kg
  • Capacity: 4m³
  • Mileage: 80~100km
  • Online consultation
  • Email Us
  • MN-H92 Side-load Garbage Vehicle
  • MN-H92 Side-load Garbage Vehicle
  • MN-H92 Side-load Garbage Vehicle

    Tags:

  • Road Sweeper
  • Floor Scrubber
  • Garbage Truck
  • Wash Vehicle
  • Description
  • Recommended Products

Description


The MN-H92 is a fully electric side-load garbage vehicle, combining a dustbin turnover mechanism with a garbage loading and dumping system. It is specifically designed for efficient waste transportation in environmental sanitation and cleaning operations, offering an eco-friendly solution for waste management.

Advantage:

● Sturdy Chassis: The chassis features a riveted design with vertical and horizontal beams, made from truck-grade special steel, ensuring high strength and load-bearing capacity.

● Durable Construction: The car body, lifting mechanism, and rear box cover are built with high-strength, rust-resistant steel for long-lasting performance.

● Easy Operation: The vehicle offers high automation and reliability, with a hydraulic manual valve handle to control the bucket lifting, garbage dumping, and loading processes, ensuring simple operation.

● Large Capacity: The box has an effective volume of 4 cubic meters, enhancing transportation efficiency.

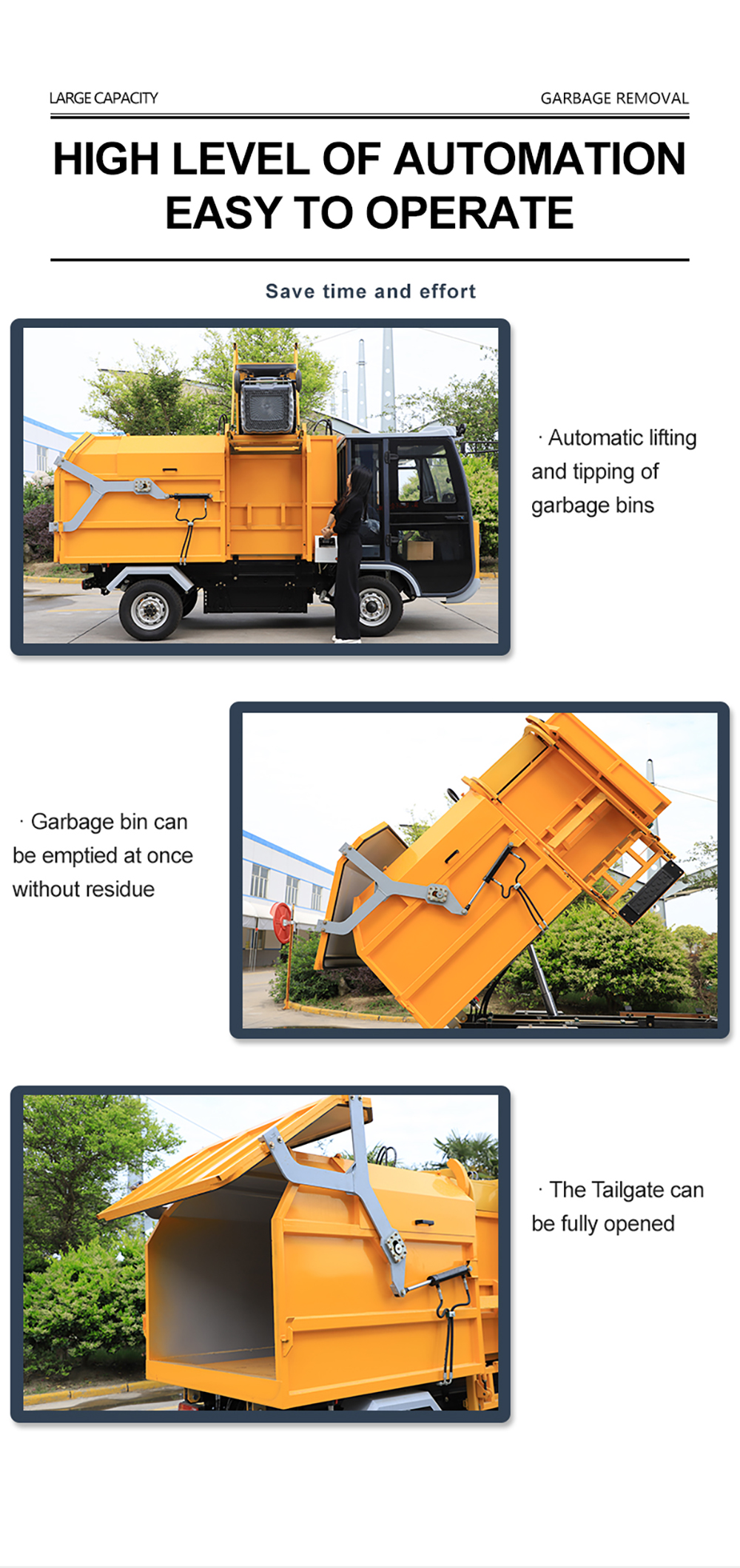

● Hydraulic Lifting and Dumping: The hopper tilts 48° with a front lifting cylinder, and the rear door fully opens hydraulically for complete waste unloading without residue.

● Leak-Proof Design: The vehicle is leak-resistant, minimizing the risk of garbage or sewage spillage during operation.

● Convenient Throwing Window: A side window allows for easy cleaning of the dustbin and manual disposal of waste.

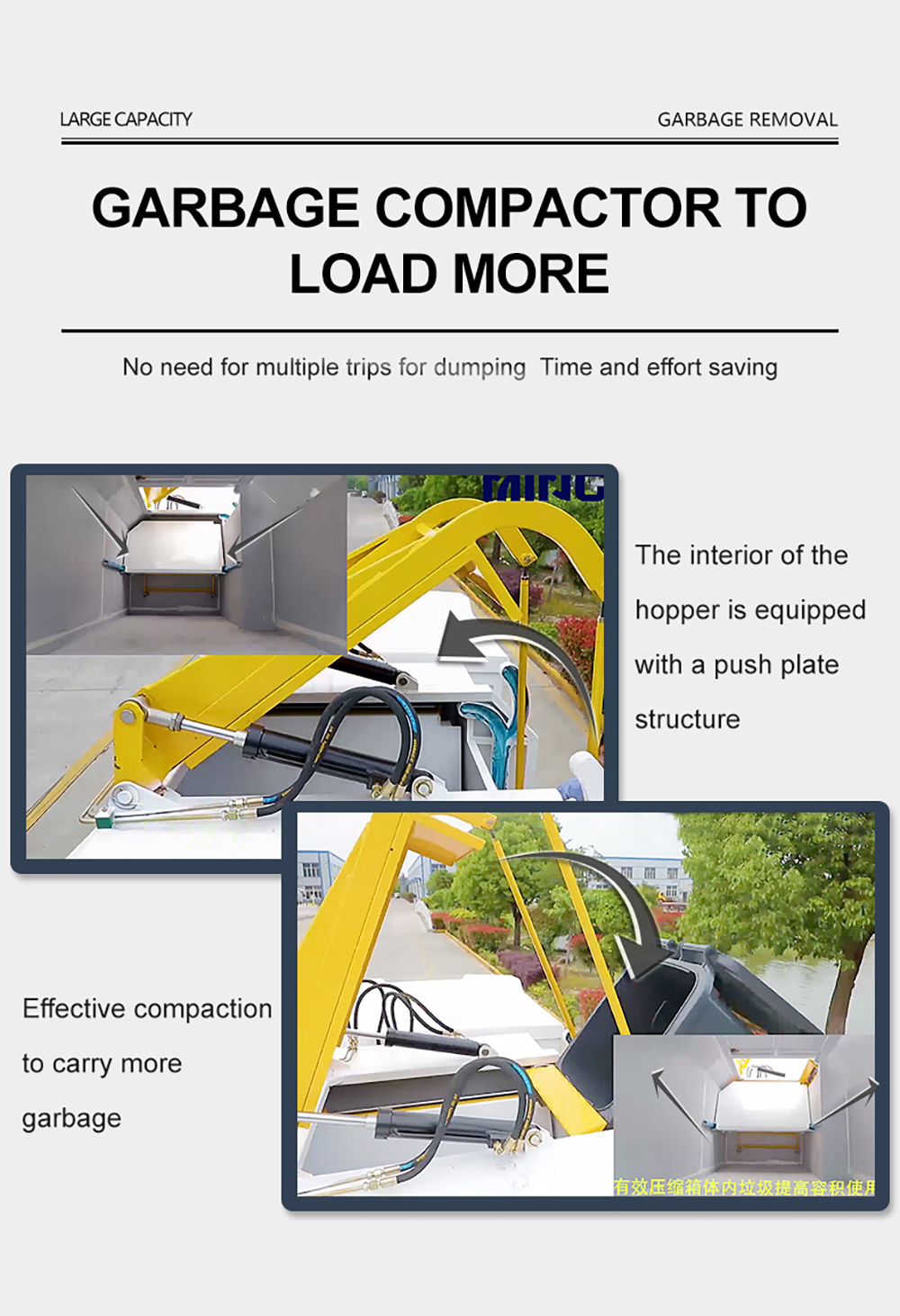

● Push Plate Mechanism: A built-in push plate compresses garbage, optimizing space utilization within the box.

Specifications:

No. ITEM UNIT SPECIFICATION
1 Dimension mm 4260X1500X2180
2 Passenger staff/人 2
3 Max Speed km/h 25
4 Min Turing Radius m 5
5 Endurance km 80-100
6 Braking ability m 4
7 Wheel track mm 1200
8 Wheel base mm 2150
9 Ground Clearance mm 200
10 Climbing % 25
11 Driving Motor kw 7.5
12 Oil Pump kw 1.3
13 Battery Group v 72
14 Trash Hopper m 3 4
15 Trash Can L 120/240
16 Machine weight kg 2180
17 Rated load kg 1500
