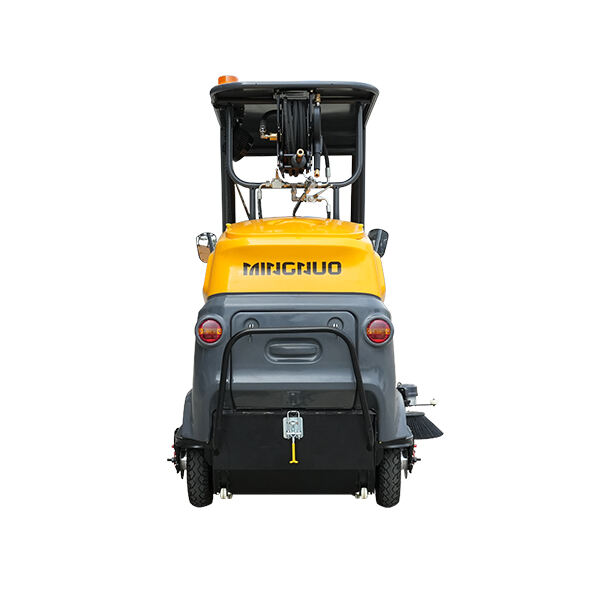

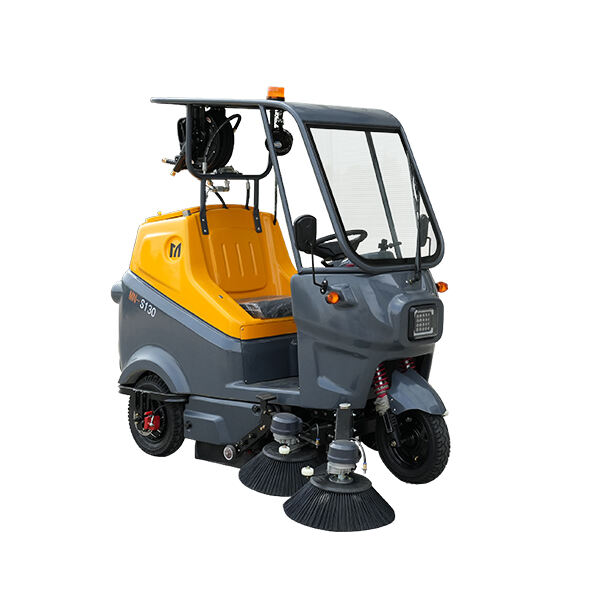

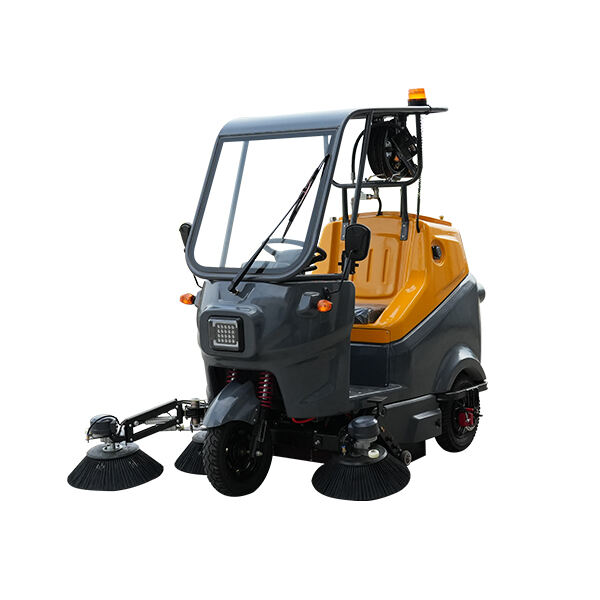

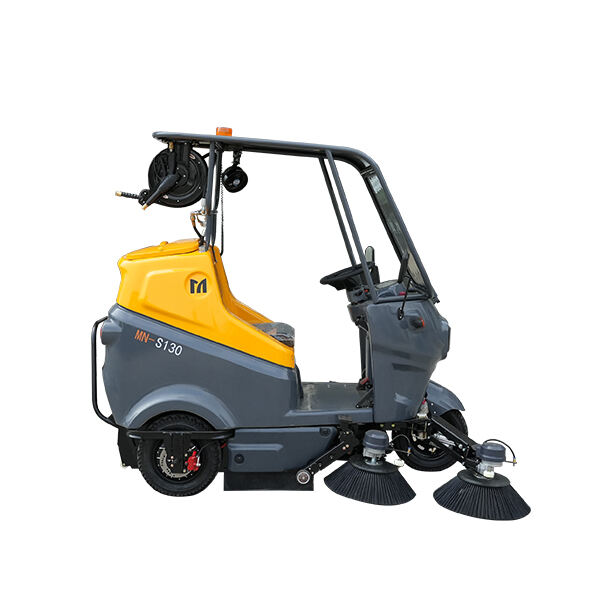

The MN-S130 is a compact and flexible all-in-one cleaning vehicle. It combines sweeping, vacuuming, spraying, and high-pressure washing, making it ideal for sanitation and maintenance tasks like daily cleaning.
It can effectively clean various types of hard surfaces such as concrete, asphalt, irregular stones, terrazzo, or brick surfaces. It is especially suitable for cleaning solid particles like sand, fallen leaves, small stones, dust, regular household solid debris, and so on.
Semi-enclosed body with spacious interior and wide visibility. The vehicle uses electrophoretic coating for strong corrosion resistance and durability.

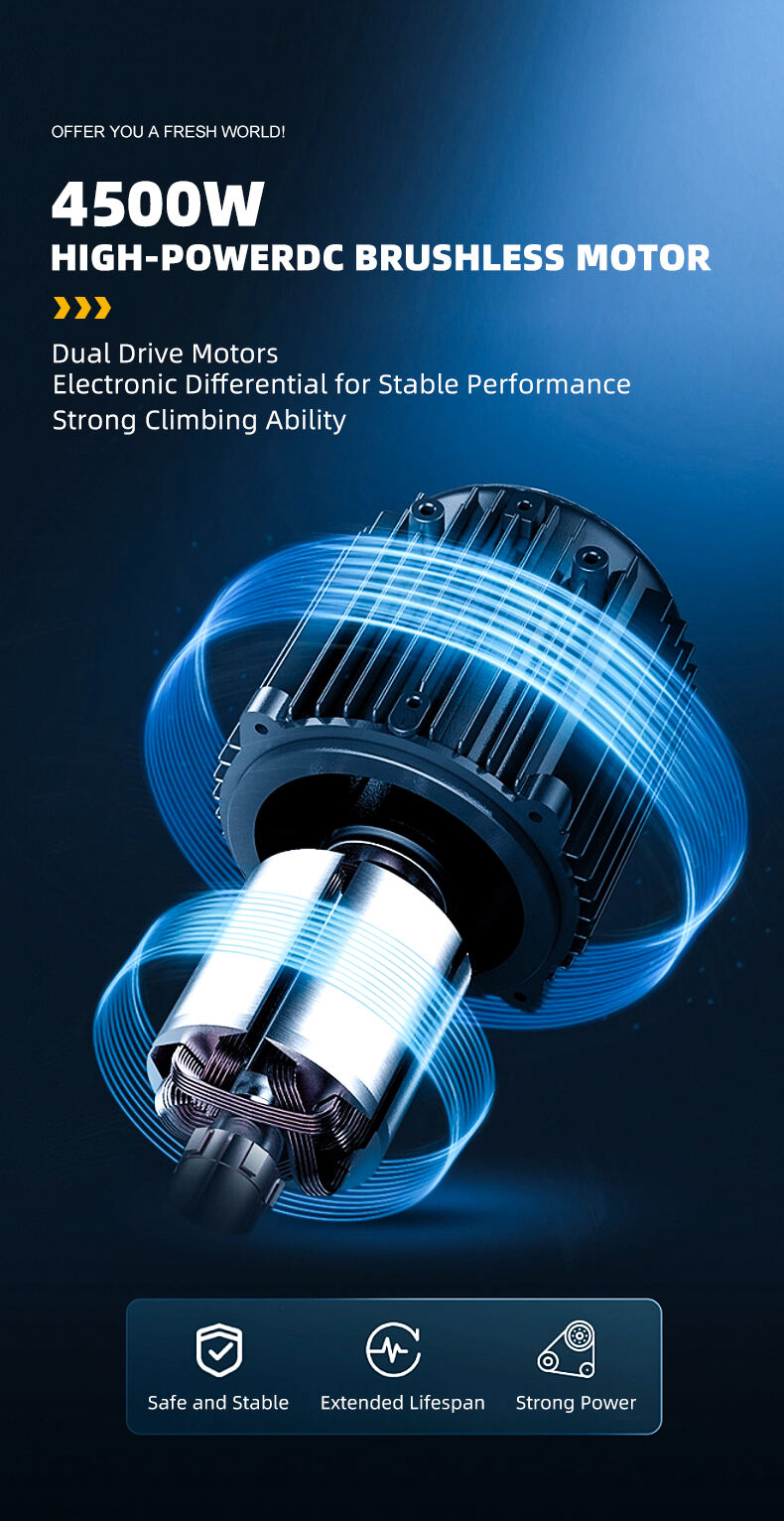

Reinforced steel chassis with high load capacity. Equipped with vacuum tires and disc brakes for enhanced safety. Powered by brushless DC motors for high efficiency and long service life. Dual drive motors with electronic differential ensure stable performance and strong climbing ability.
The main brush is driven directly by an external rotor motor, delivering high transmission efficiency, longer runtime, and improved cleaning performance.
Sleek and modern design, stable operation, low maintenance rate, and excellent sweeping results.
Compact three-side-brush structure for better maneuverability and easy access in tight spaces.
Maximum speed of 25 km/h enables fast transfers and high work efficiency.
Integrated sweeping and washing system suits various cleaning scenarios.
| No. | Item | Unit | Specification |
| 1 | Sweeping Width | mm | 1550 |
| 2 | Working Efficiency | ㎡/h | 12000 |
| 3 | Climbing Ability | % | 15 |
| 4 | Main Brush Width | mm | 700 |
| 5 | Side Brush Diameter | mm | 520 |
| 6 | Battery Capacity | Ah | 48V105AH (standard lithium battery) |
| 7 | Working Time | h | 4-6 |
| 8 | Range (not load) | KM | 105 |
| 9 | Range (Full load) | KM | 95 |

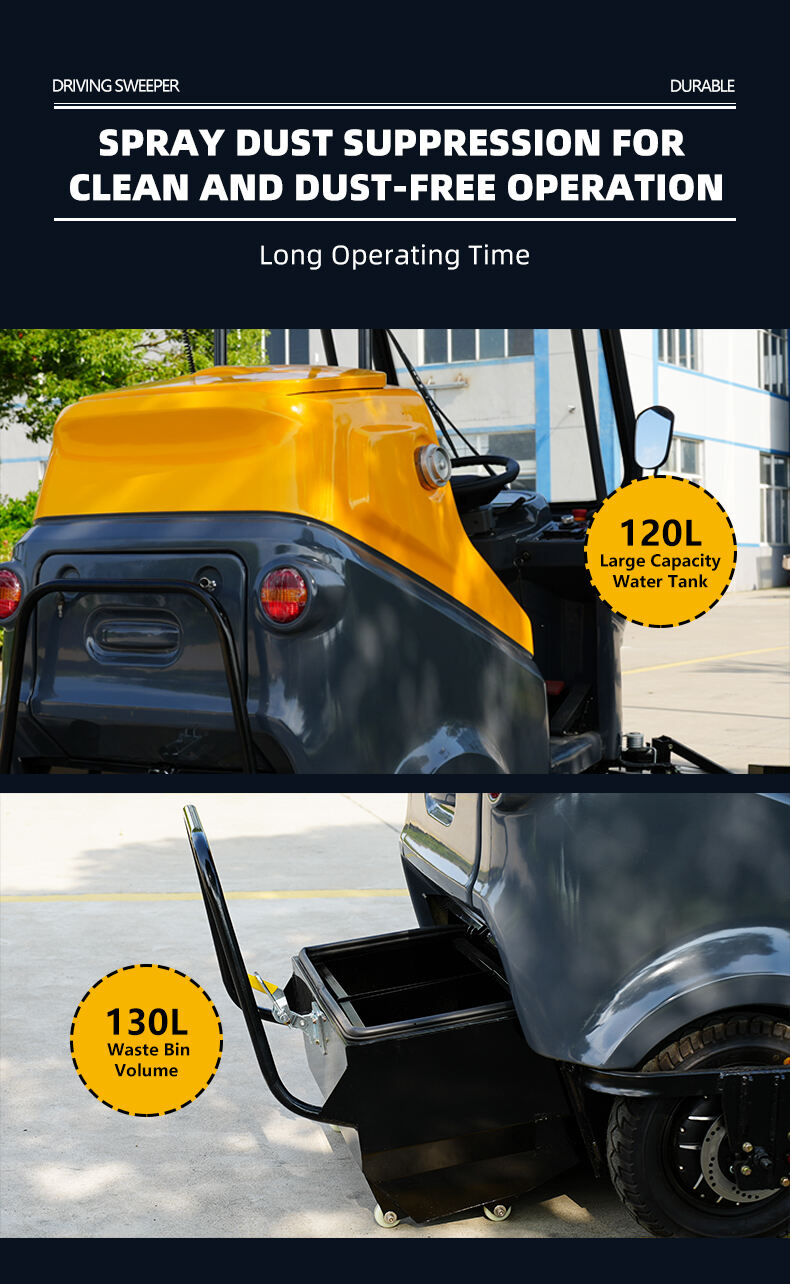

| 10 | Water Tank | L | 120 |
| 11 | Waste Hopper | L | 130(dual-hopper system) |
| 12 | Rated Voltage | V | 48 |
| 13 | Drive Power | W | 1500x2 |
| 14 | Rated Power | W | 4500 |
| 15 | Drive Speed | km/h | ≤25 |
| 16 | Working Speed | km/h | 5-10 |
| 17 | Turing Radius | mm | Left2205 right2240 |
| 18 | Wheelbase | mm | 1385 |
| 19 | Drive Type | / | Rear independent dual-wheel drive |
| 20 | Braking System | / | Hydraulic disc brake |
| 21 | Work/Transfer Mode Switch | / | Yes |
| 22 | Curb Weight | kg | 465(without high-pressure washer)490(with high-pressure washer) |
| 23 | Dimensions(LxWxH) | mm | 2025x1165x1880(without brush andwarning light)2205x1585x1980 (with brush andwarning light) |
| 24 | Hose Reel | m | 8 |
| 25 | High-Pressure Pump | W | 1000 |
