mn v53 walk behind scrubber-0

Floor Scrubber

Home >  Products >  Floor Scrubber

MN-V53 Walk-behind scrubber
MN-V53 Walk-behind scrubber
MN-V53 Walk-behind scrubber
MN-V53 Walk-behind scrubber
MN-V53 Walk-behind scrubber
MN-V53 Walk-behind scrubber

MN-V53 Walk-behind scrubber

  • Online consultation
  • Email Us
  • MN-V53 Walk-behind scrubber
  • MN-V53 Walk-behind scrubber
  • MN-V53 Walk-behind scrubber

    Tags:

  • Road Sweeper
  • Floor Scrubber
  • Garbage Truck
  • Wash Vehicle
  • Description
  • Recommended Products

Description

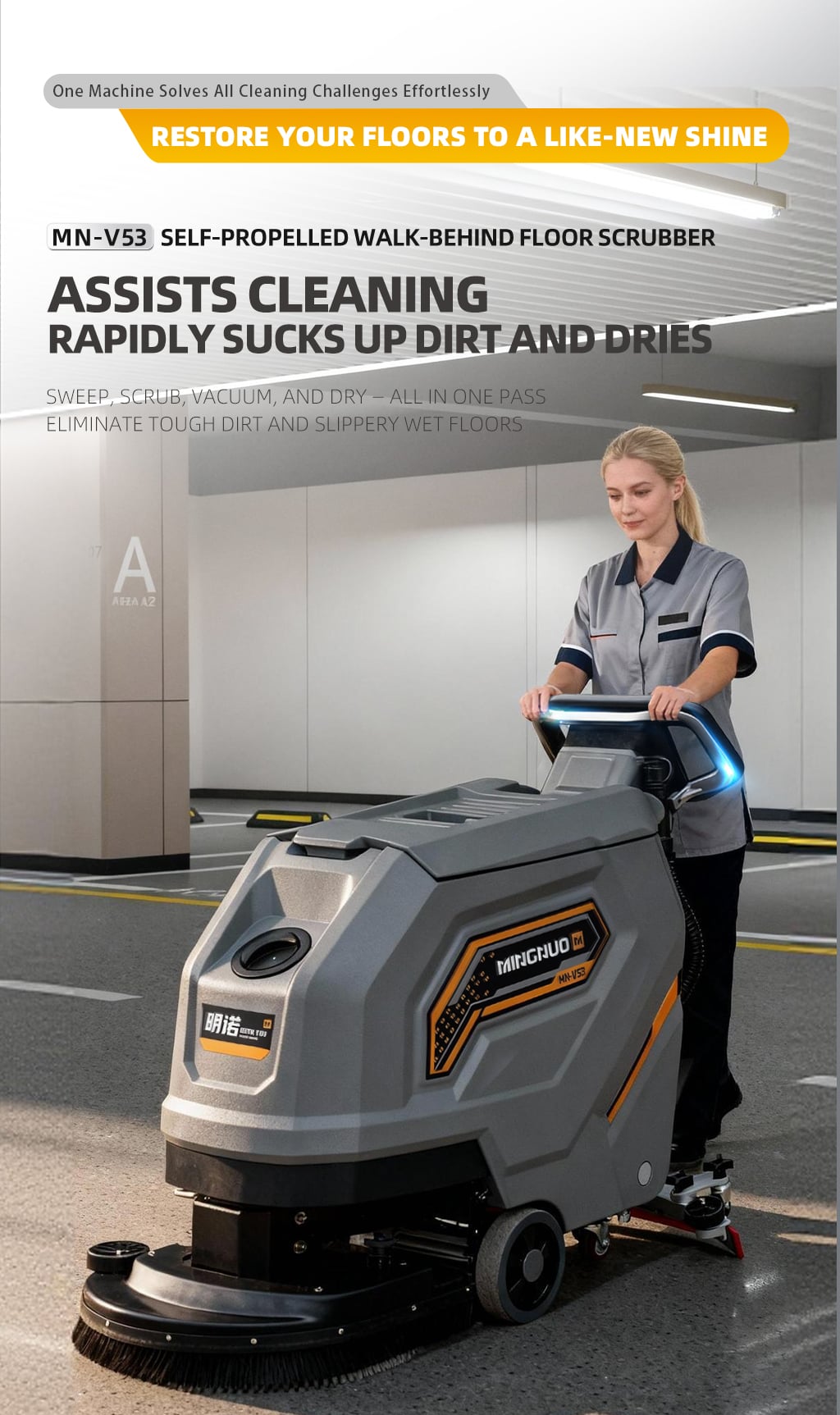

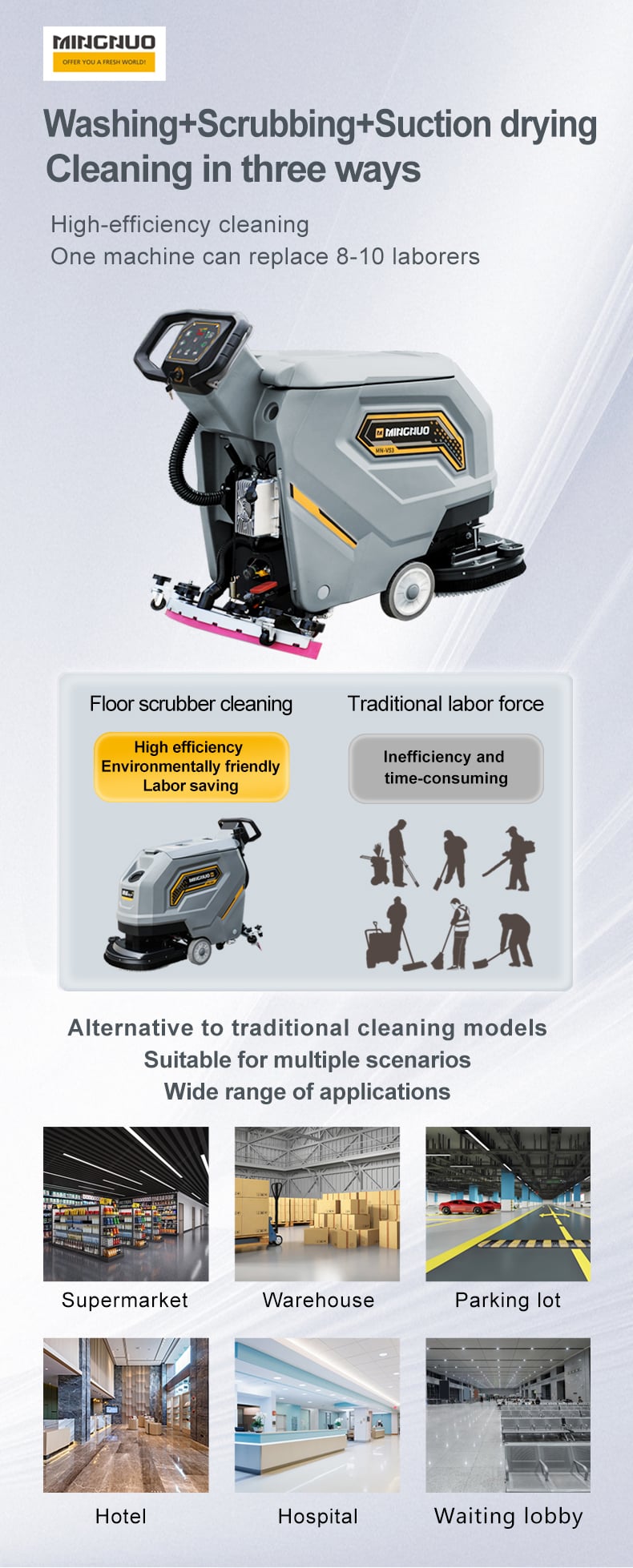

The MN-V53 walk-behind scrubber is designed primarily for cleaning areas,including tiles, marble, epoxy floors, etc. It can add detergent to clean oily floors. Equipped with a 60L fresh water tank and 65L waste water tank. This scrubber offers durability and reliability.Its high energy efficiency and powerful cleaning pressure make it ideal for efficiently cleaning large commercial spaces. Commonly used in retail stores, manufacturing plants, warehouse, shopping centers,convention centers,airports, parking lots, railway stations and other fields.


Application Scenarios


Cleaning objects


Function


Features

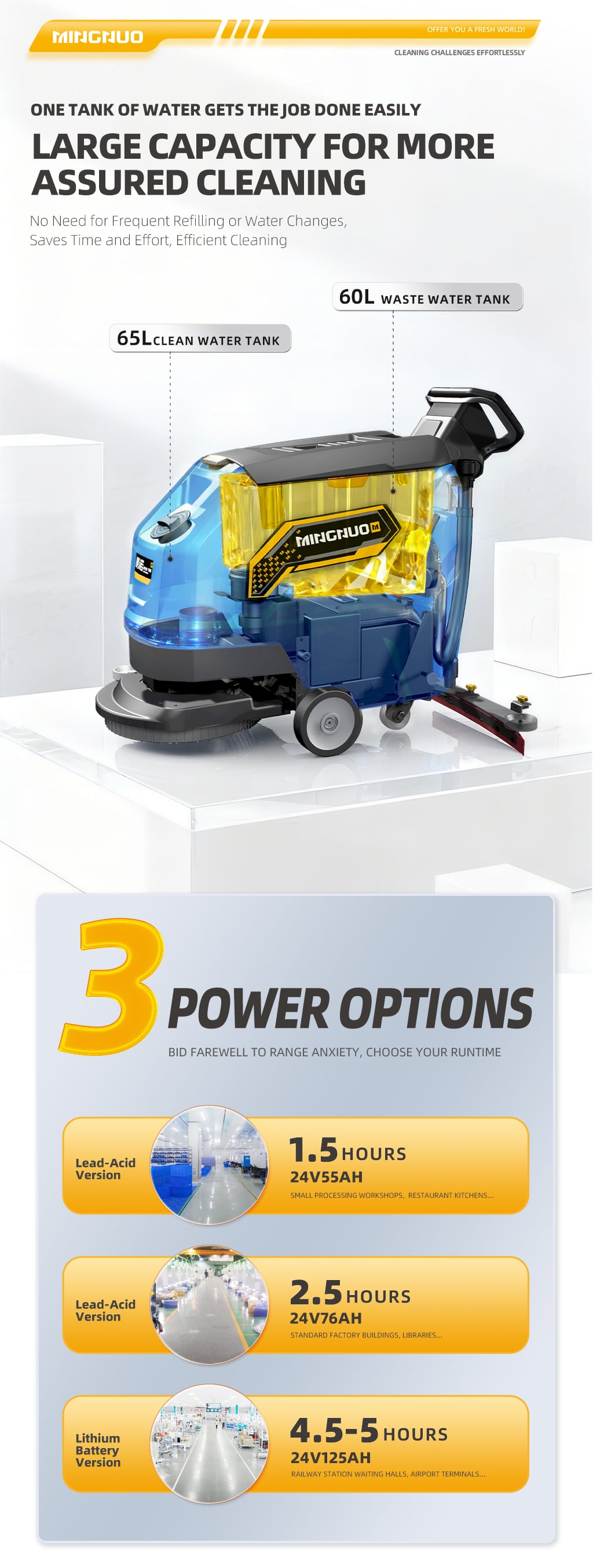

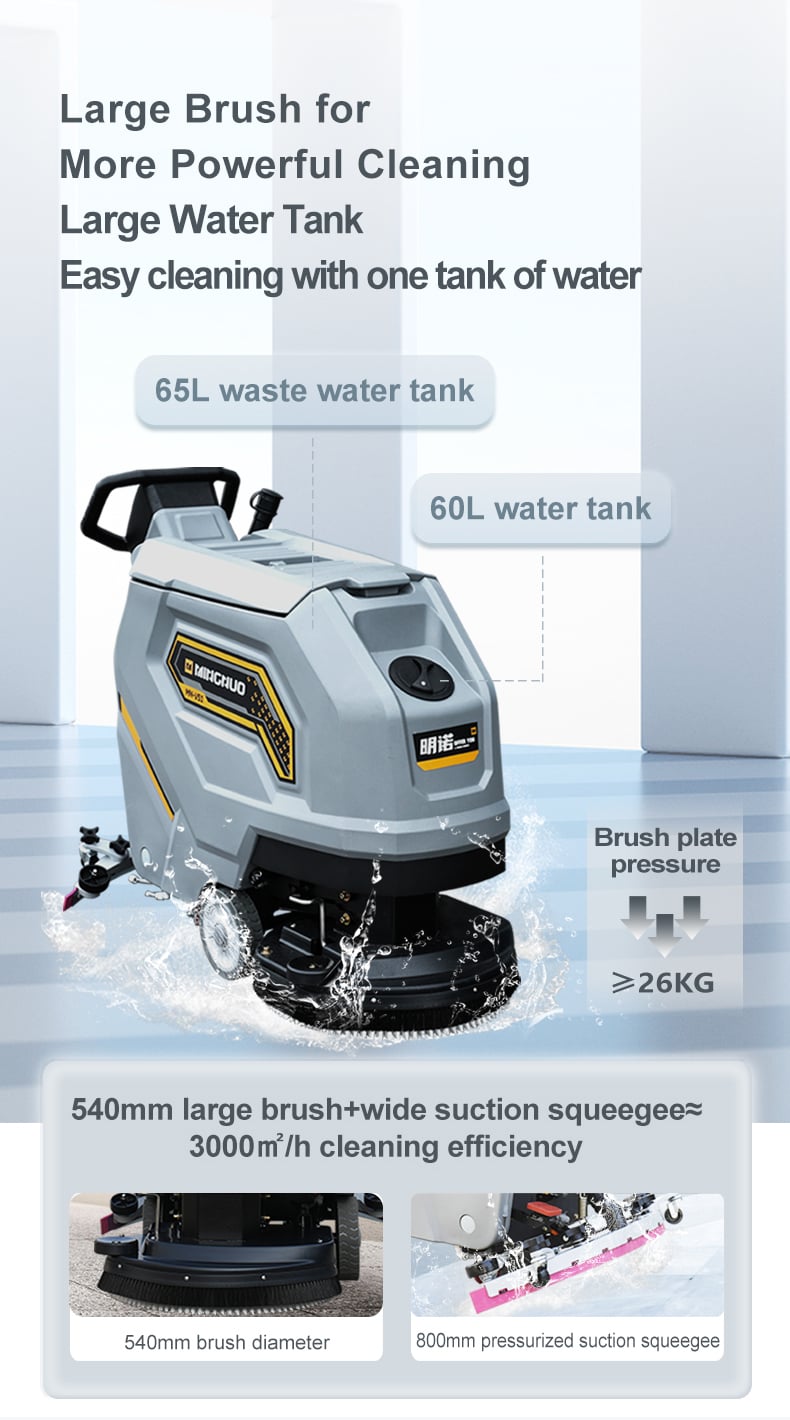

● 65L waste tank and 60L fresh water tank, ideal for small area cleaning operations;

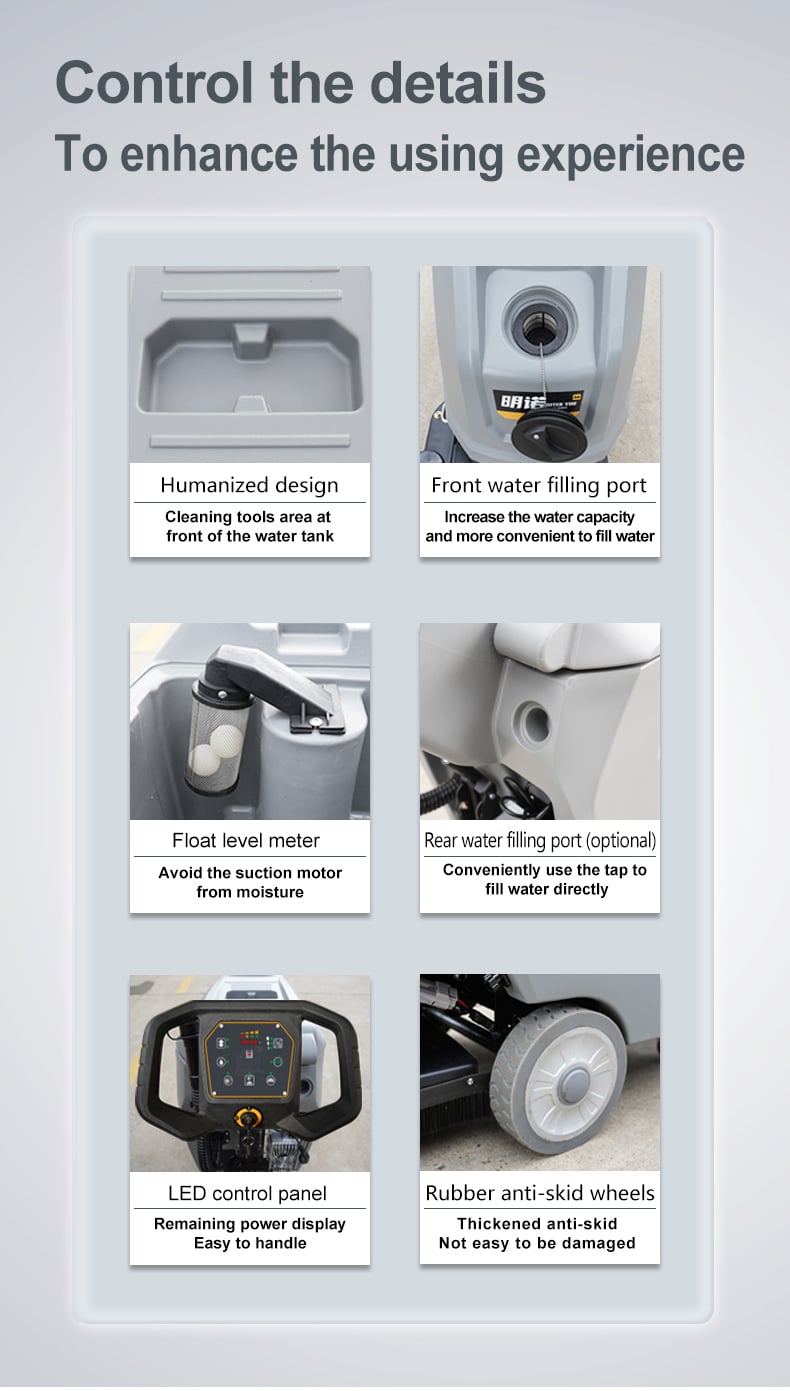

● Waste tank features full float protection and a water level alarm, providing dual protection for the suction motor;

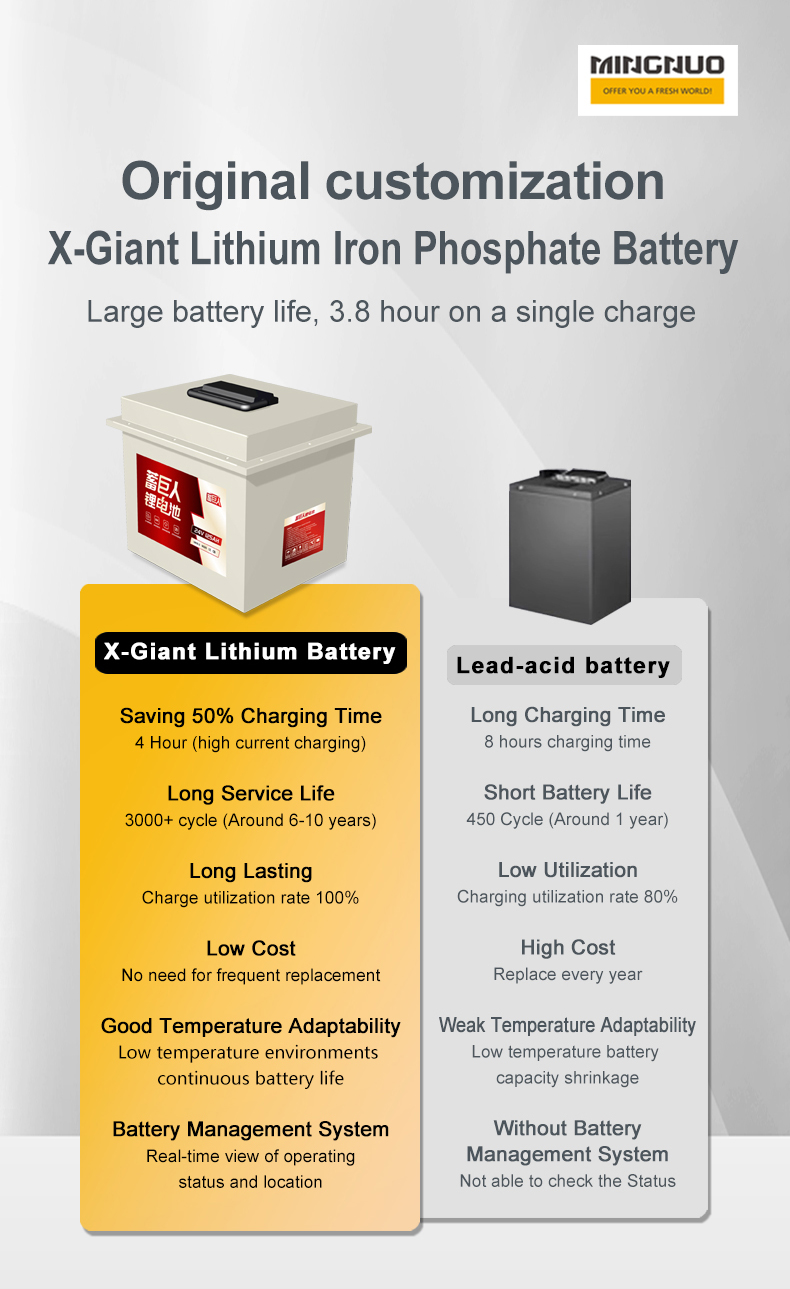

● Equipped with a standard 24V 125Ah high capacity battery pack, offering over 4 hours of continuous working time;

● Multiple operating modes available, including deep cleaning and energy-saving mode. The water switch is individually controlled to adjust for different levels of dirt, optimizing cleaning efficiency

● Silent operation design. The front wheels are equipped with anti-slip tread patterns, offering extended service life;

● Standard V-shaped suction squeegee and optimized air duct structure for enhanced water suction performance;

● Touch control panel with one-touch start for easy operation;

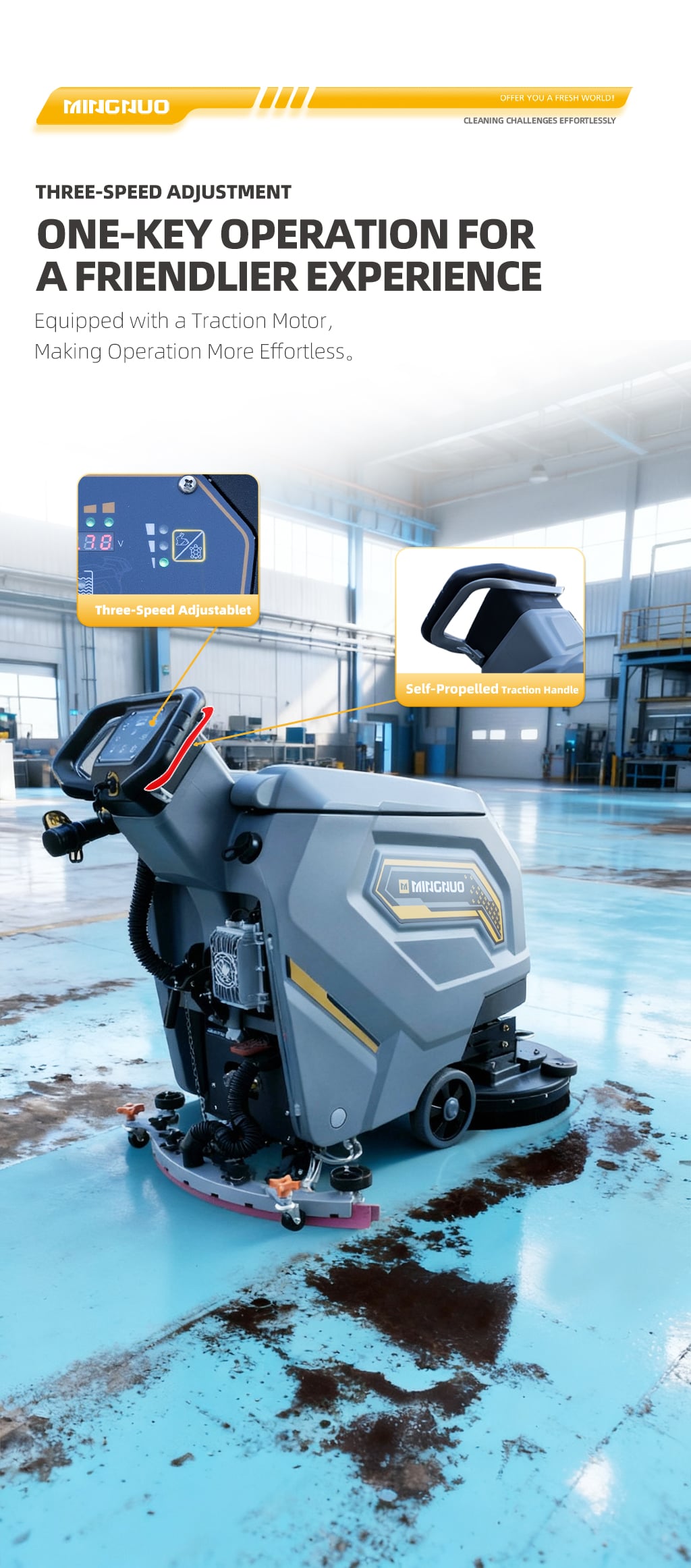

● Equipped with a self-propelled system, making operation easier and more labour-saving; supports push-assist with adjustable speed control;

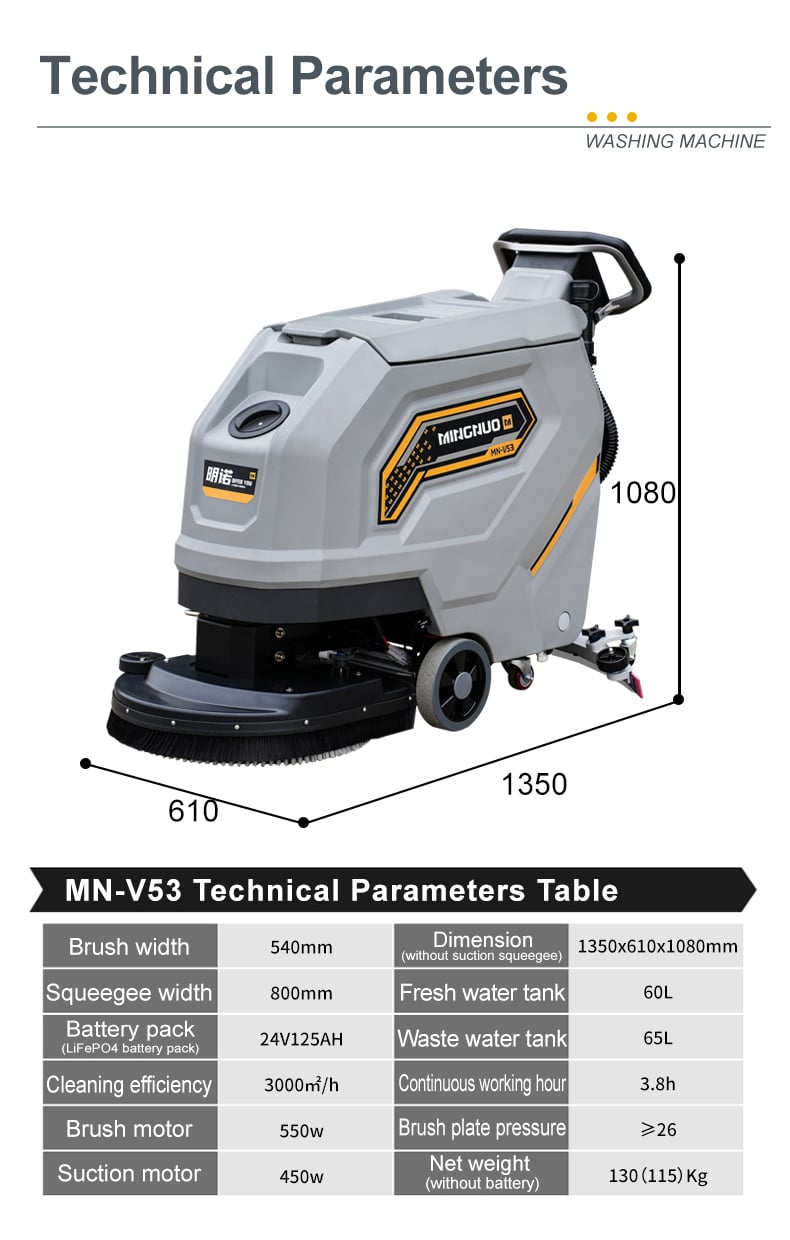

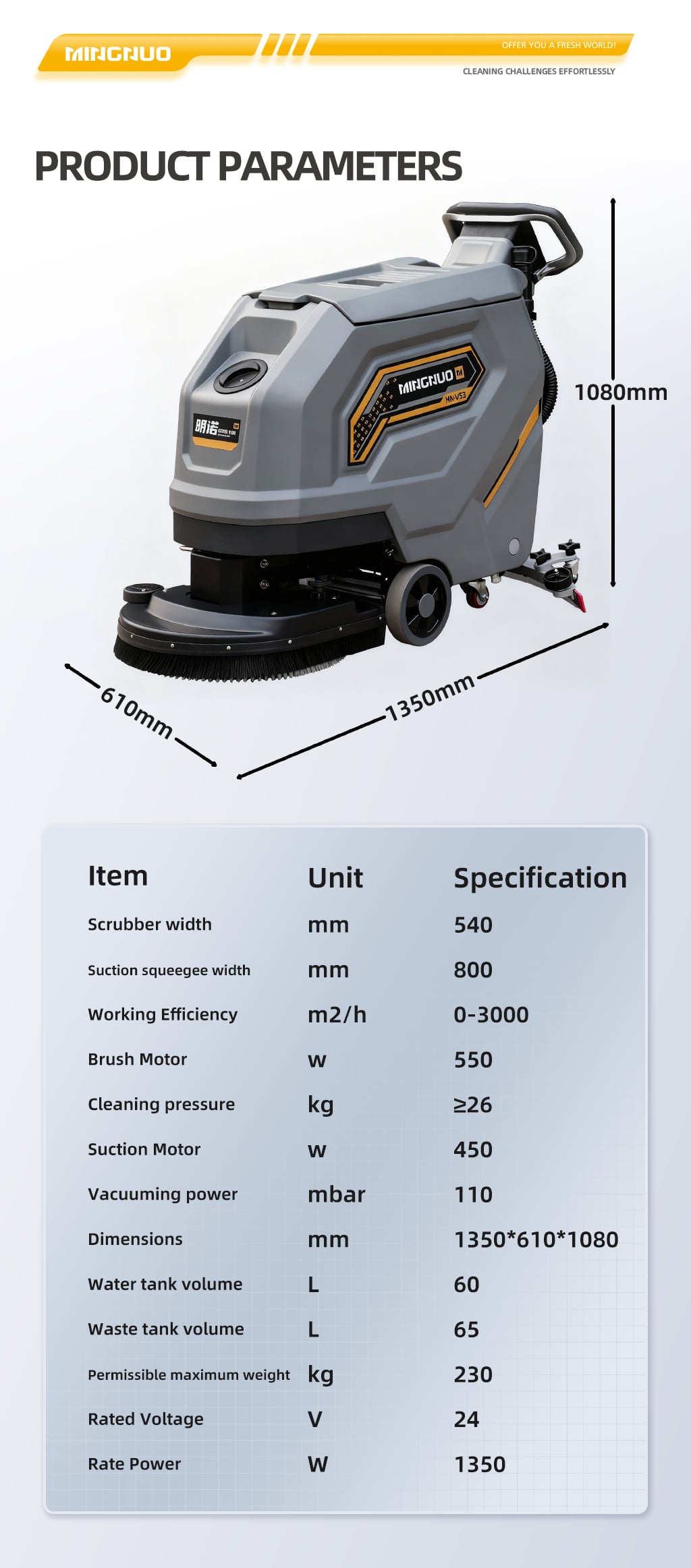

Specification

No. Item Unit Specs
1 Scrubber width mm 540
2 Suction squeegee width mm 800
3 LiFePO4 Battery Ah 24V125Ah

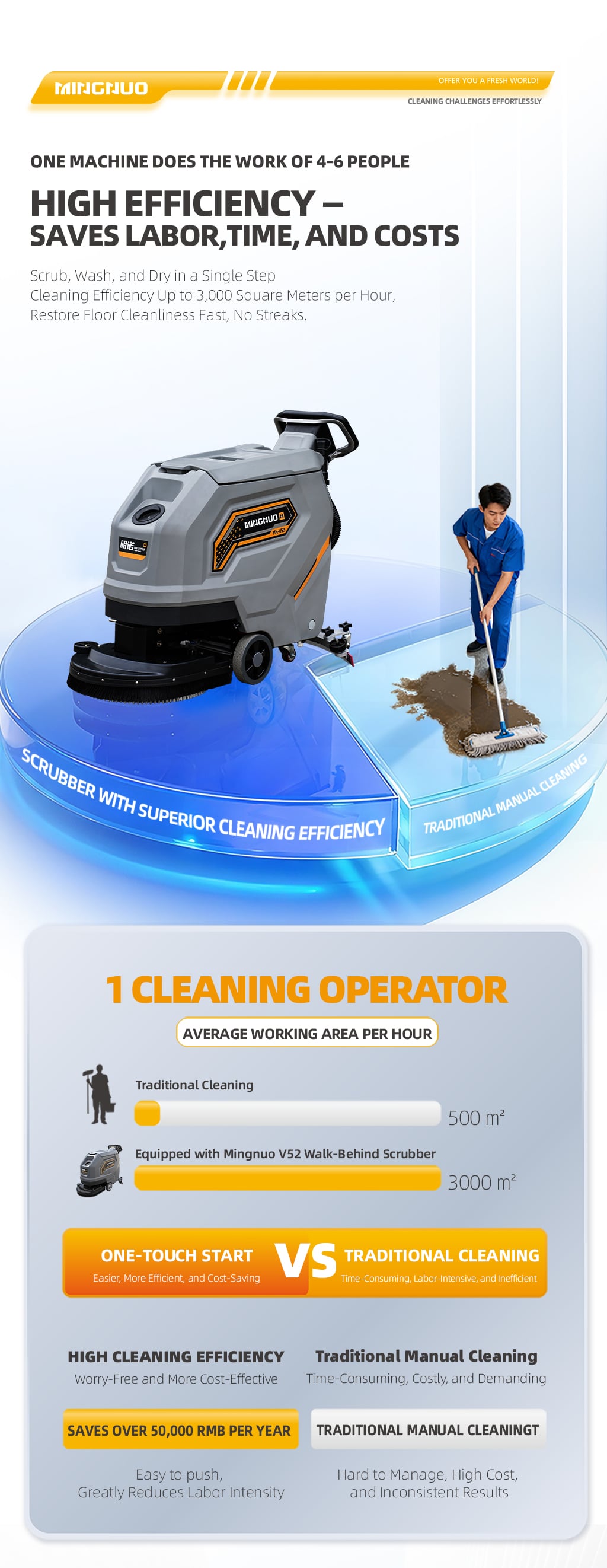

4 Working efficiency m2/h 0-3000

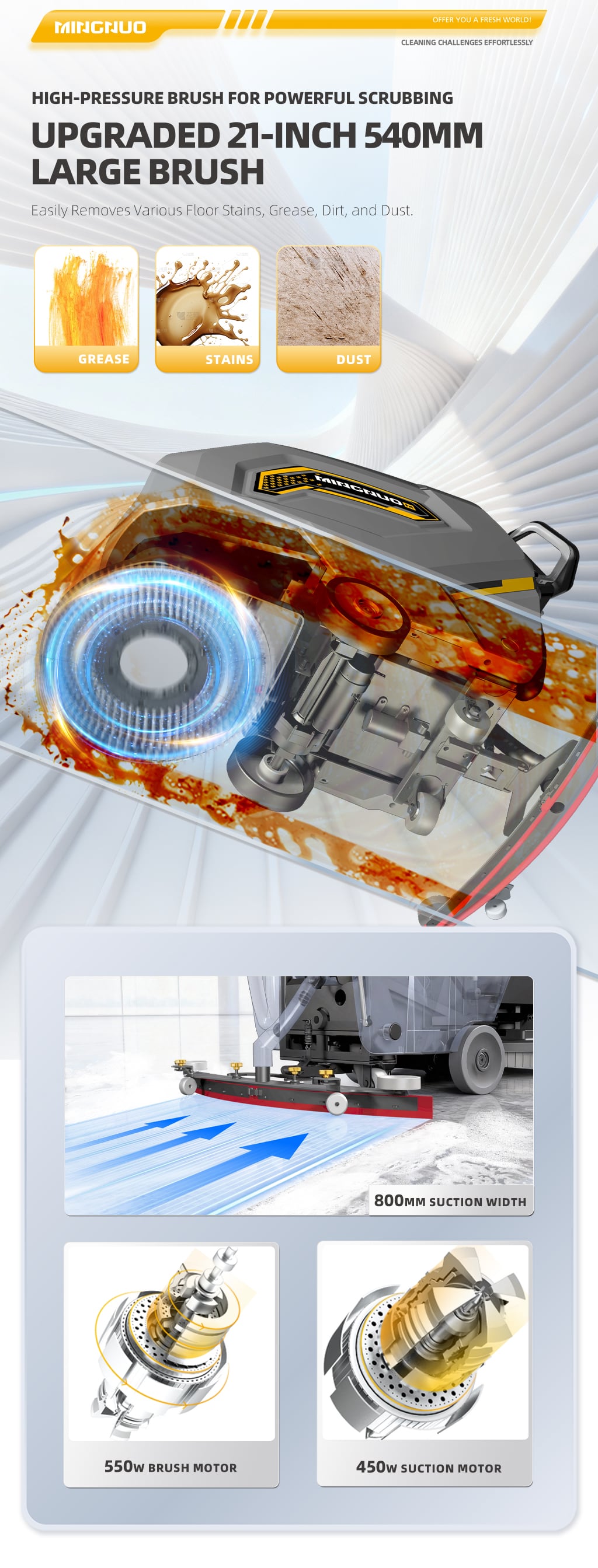

5 Brush disc diameter mm 530

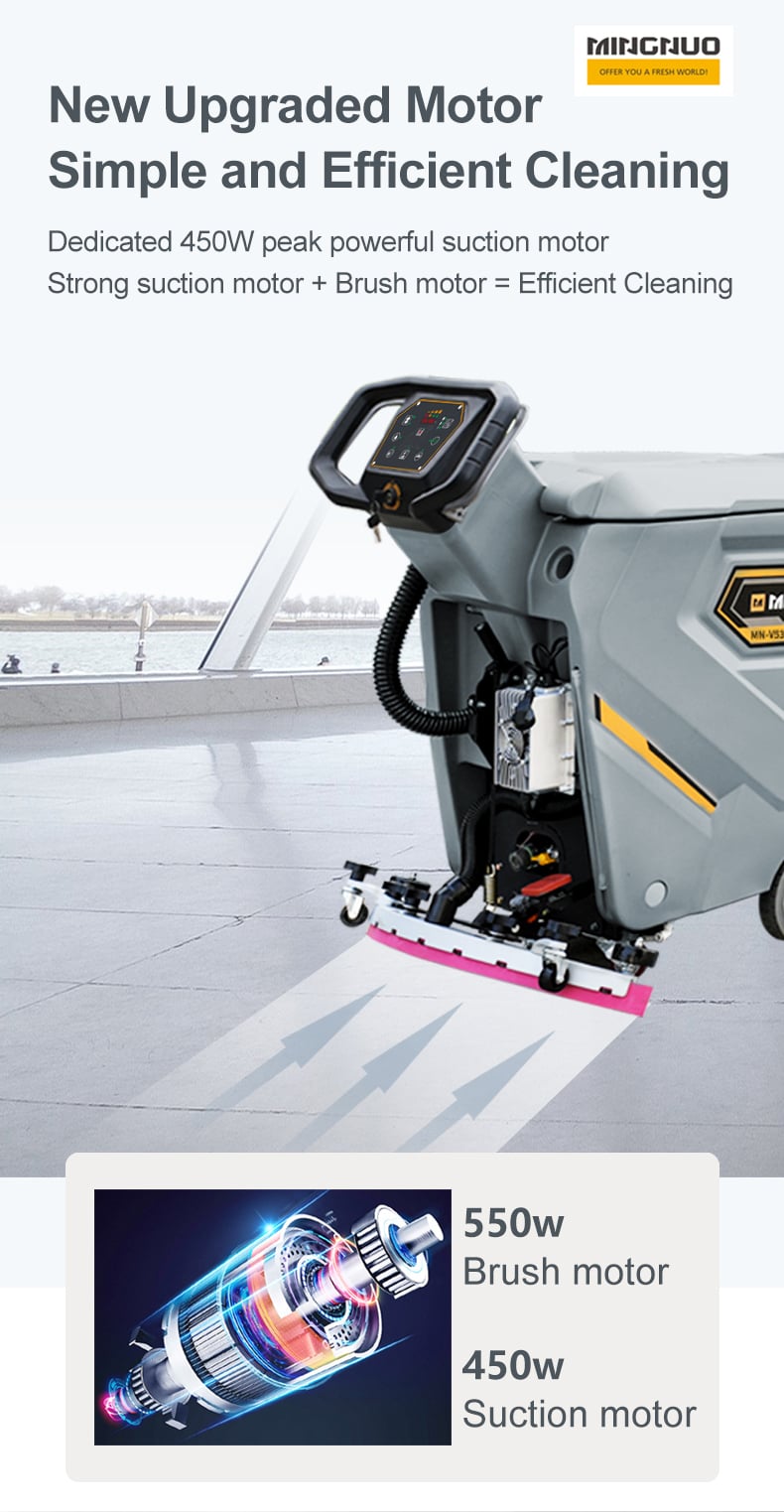

6 Brush motor w 550
7 Cleaning pressure kg ≥26
8 Suction motor w 450
9 Vacuuming power mbar 110
10 Dimensions (without suction squeegee ) mm 1350*610*1080
11 Water tank L 60
12 Waste tank L 65
13 Charger Current Ah 15
14 Continuous working time h 3.8
15 permissible maximum weight kg 230
16 Rated Voltage V 24
17 Rate Power W 1350
18 Net Weight (without battery) kg 130(115)
19 Max working range incline % 5
20 Walking motor w 350
21 Speed Km/h 0-5
22 Water consumption L/min 0-1.6

v53下拉图-精简-英文版_02.jpgv53下拉图-精简-英文版_03.jpgv53下拉图-精简-英文版_04.jpgv53下拉图-精简-英文版_05.jpgv53下拉图-精简-英文版_06.jpgv53下拉图-精简-英文版_07.jpgv53下拉图-精简-英文版_08.jpg
