1.5kwh Three-in-One Mobile Power Station

1.5kwh Three-in-One Mobile Power Station

Tags:

Description

1 (1)(8120cb9d0b).jpg

Introduction

Equipped with power-grade lithium iron phosphate batteries, the device delivers on its high-capacity claims with reliable performance, featuring durable cycling cycles and stable discharge characteristics for enhanced safety and user confidence. Independent of traditional power grids, it possesses self-contained power supply capabilities to provide continuous and stable electricity output anytime, anywhere.

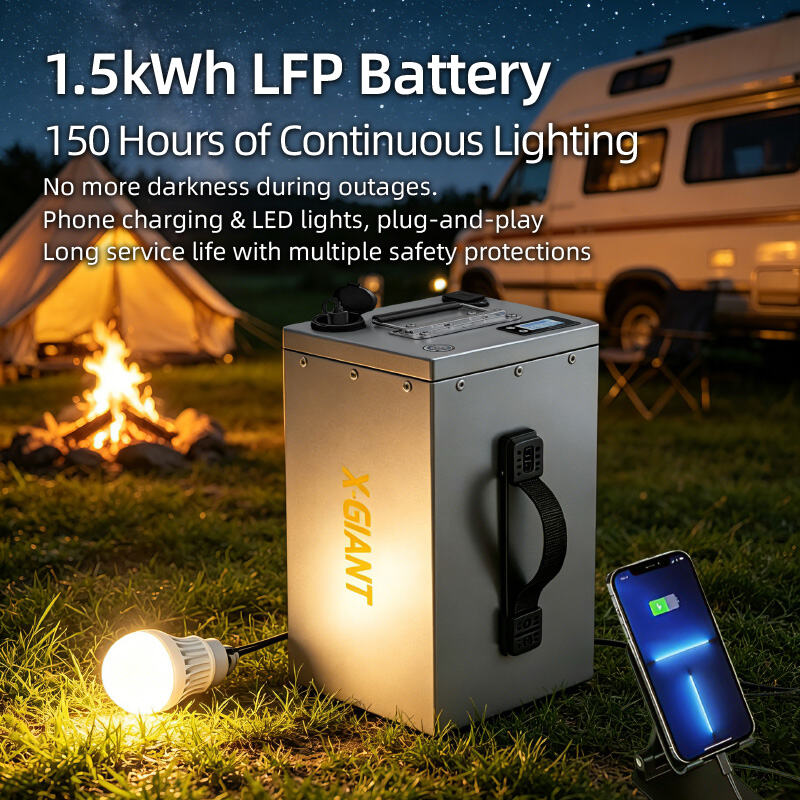

Multi-Type Output Ports

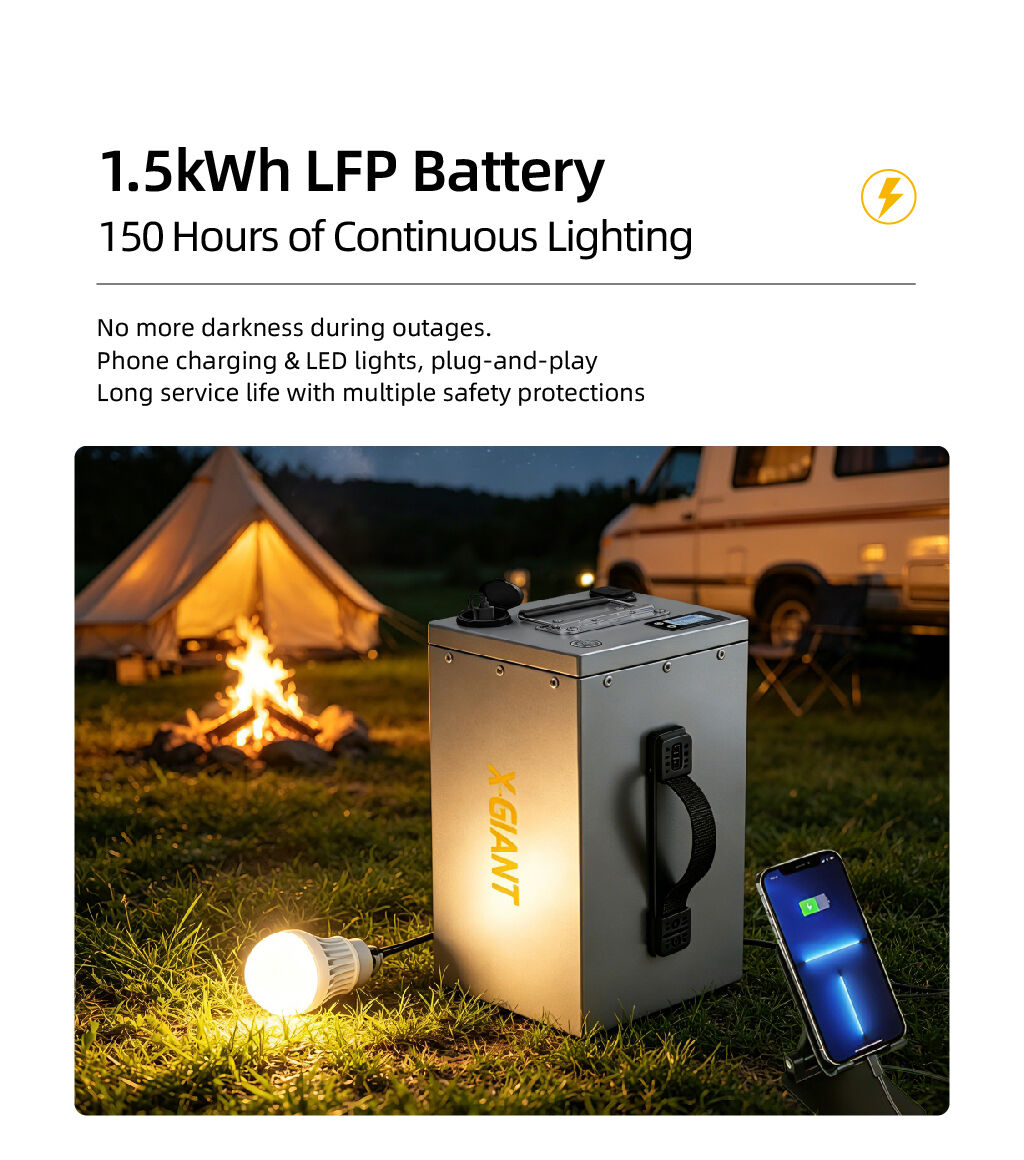

Equipped with multiple output ports, it can meet the power supply requirements of daily devices such as lighting and mobile phones, and can provide continuous lighting for 150 hours. It is suitable for home emergency and outdoor leisure, with a wide range of uses, making it easy to light up every moment of life.

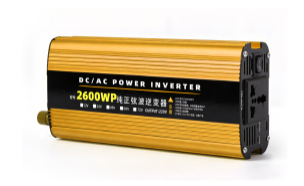

High-Power Inverter

The system supports optional 1500W high-power inverters, delivering standard

220V/110V voltage to ensure compatibility with diverse household appliances

and equipment, while effortlessly handling high-power electrical demands.

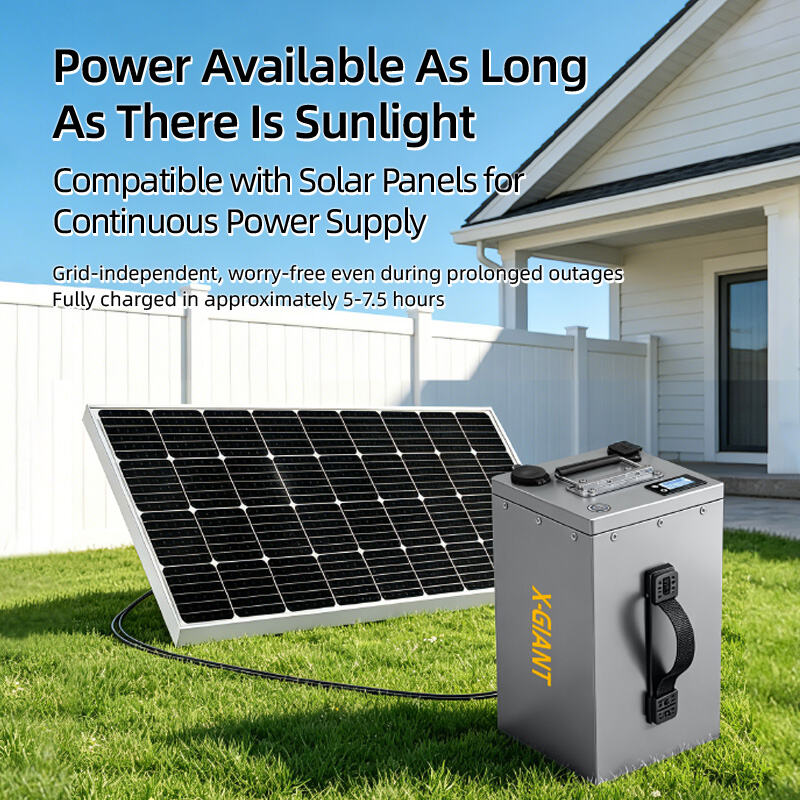

Solar Photovoltaic Panels

Optional solar photovoltaic panels enable continuous power generation with

sunlight exposure,eliminating concerns about power outages or outdoor

scenarios without electricity. Quick charging takes approximately 5 to 7.5 hours,

ensuring long-lasting battery life and enhanced convenience.

Application scenarios

Home emergency backup power
Electrical appliances
Home lighting
Outdoor electricity usage

Performance Features

Off-grid independent power supply operates without reliance on municipal grids,featuring a self-contained power system that ensures continuous and stable electricity delivery.
The safe and reliable battery cell employs power-grade lithium iron phosphate batteries,featuring high capacity and actual capacity, with excellent safety and long cycle life.
Multi-device compatible output with multi-port design, supporting power supply for various household/portable devices including smartphones, laptops, and lighting fixtures.
High-power inverter extension: Optional 1500W inverter with 220V/110V mains output,suitable for household appliances and high-power equipment.
The solar energy replenis hment system is equipped with optional 12V 300W/450W photovoltaic panels, which can be charged by sunlight and fully charged in approximately 5-7.5 hours.

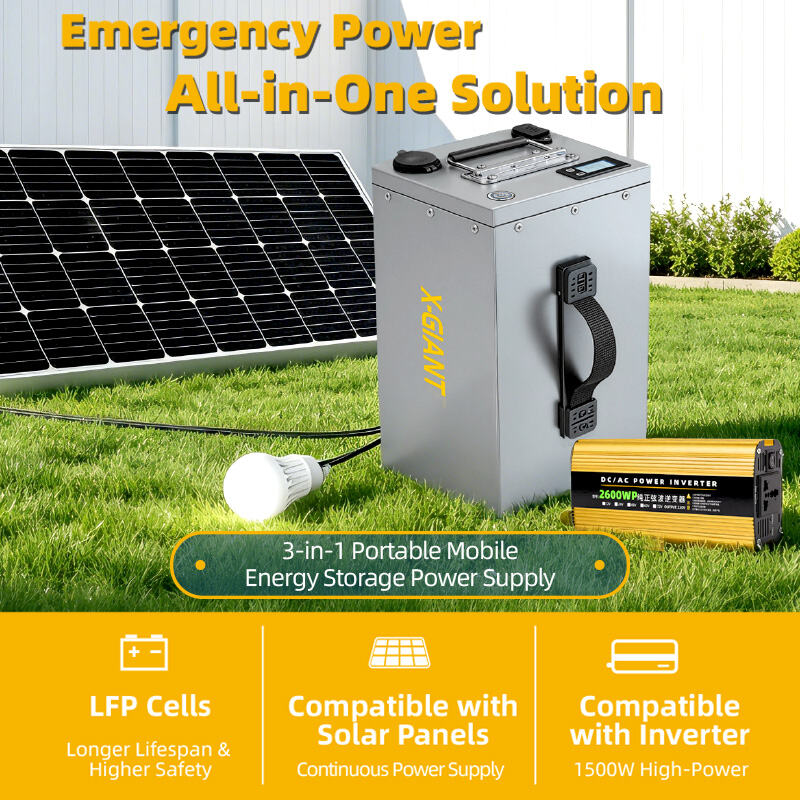

The three-in-one integrated design combines energy storage power supply, inverter, andsolar panels into a unified solution, providing one-stop power management for all electrical needs.

Specifications

Export technical parameters and configurations
LED display screen	1 (Displays battery voltage/battery level)
DC socket with terminal block	1个（DC40V~58.4V）
USB/TYPE-C	One each (default output: 5V 1.5A 7W; maximumoutput: 20V 1.3A 30W)
Control switch	1 (main switch)

Enter technical parameters
Cell voltage	48V
Voltage range	40V~58.4V
Battery type	16-cell lithium iron phosphate battery
Battery low voltage alarm	43V
Battery low voltage protection	40V
Battery overvoltage protection	60V
Static current in shu tdown mode	Reactive power consumption

Output protection
High-temperature protection	≥65℃，turn off the output
Output short circuit	Automatic recovery for short and light circuits; output shutdown if circuit duration exceeds 3 seconds
Overload protection	Auto shutdown

Other parameters
Protect	Low voltage, over voltage, overheating, overload,and short-circuit protection
Working temperature	-20℃~70℃
Working humidity	10~90%RH
Storage temperature	-40℃~60℃
Storage humidity	10~95%RH
Use altitude	≤3000(above 1000 meters, reduced usage)

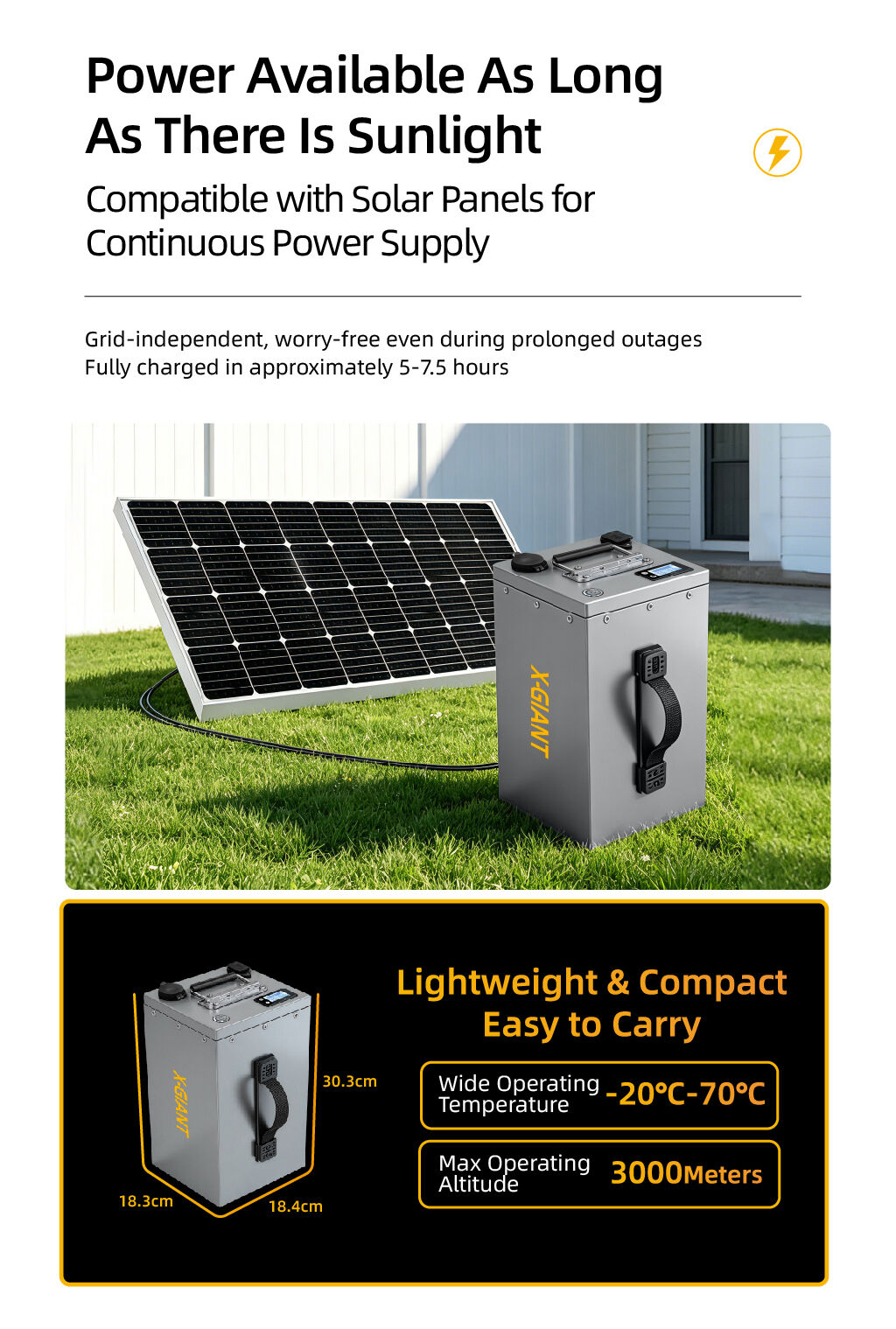

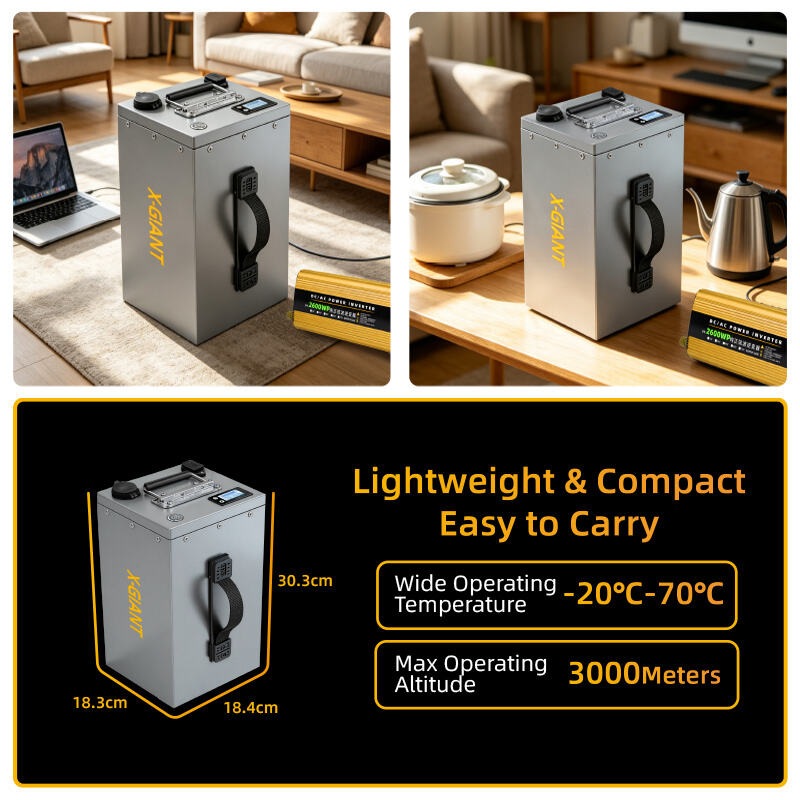

Product size	Length 183mm / Width 184mm / Height 303mm

Feature Introduction

1、Display screen 　2、Pin interface

3、 USB interface 　4、 Battery switch

5、Portable handle

Function configuration

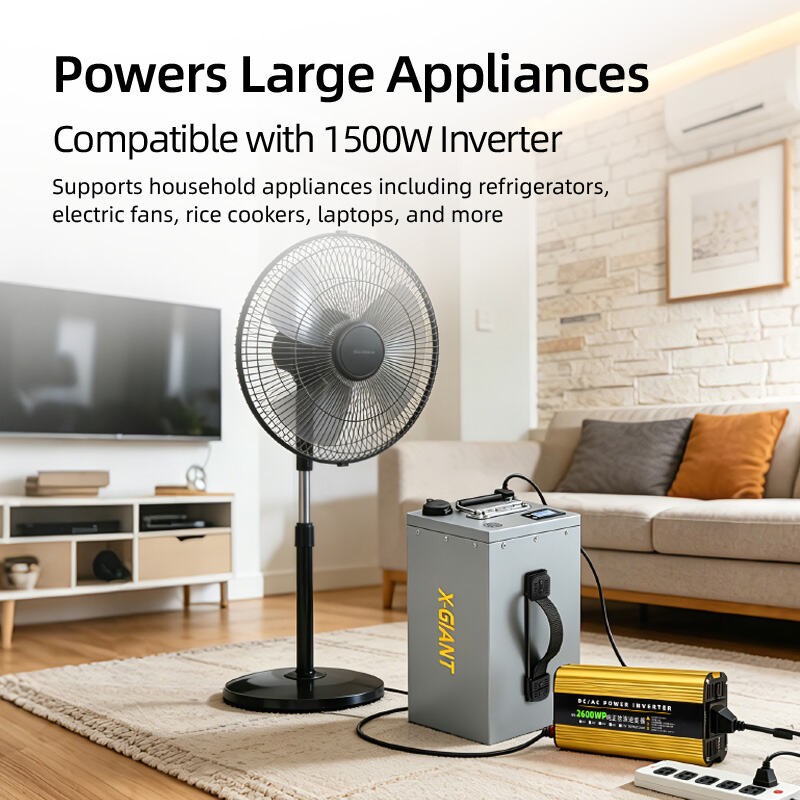

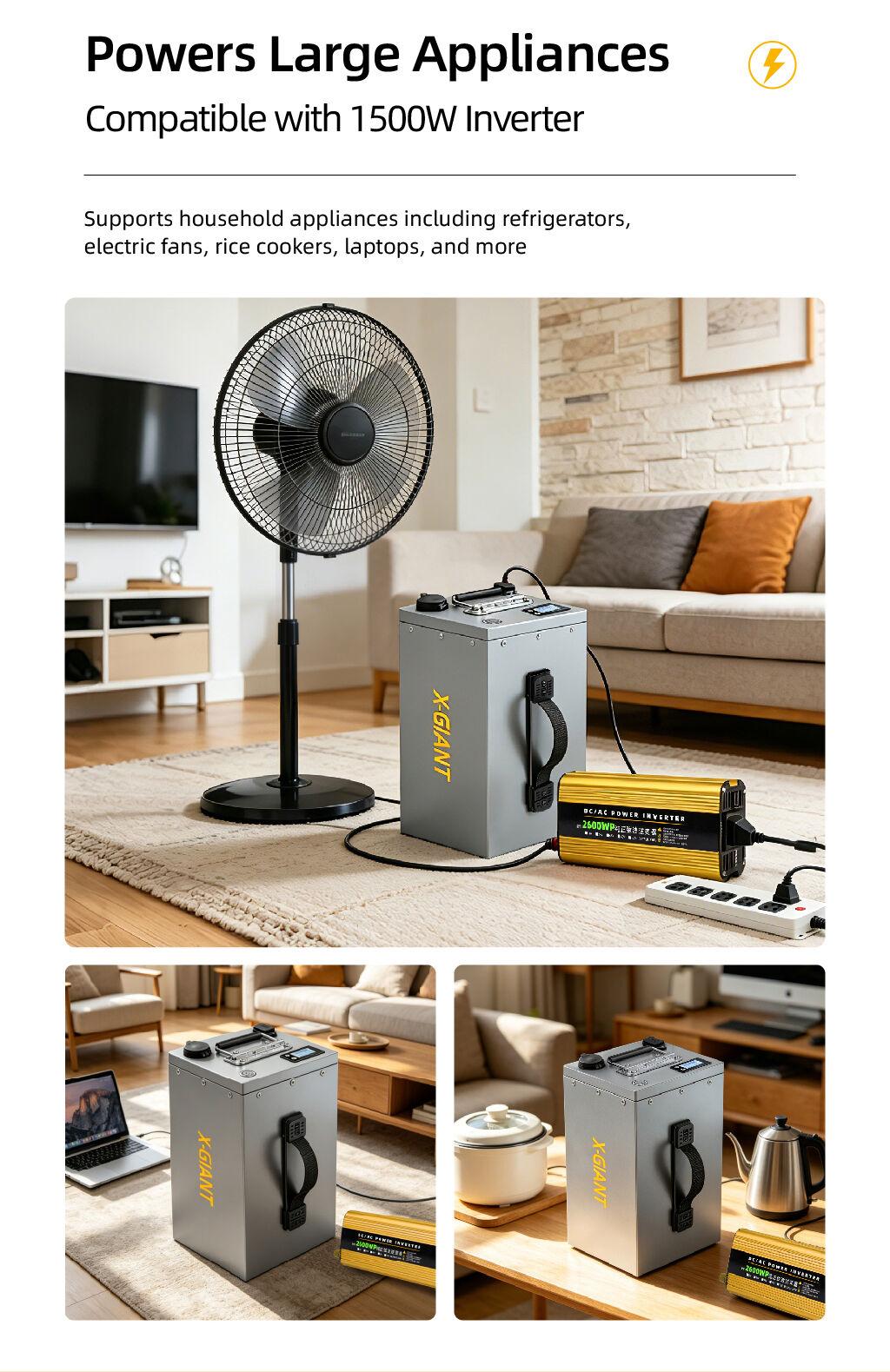

Optional high-power inverter Medical oxygen concentrators, ice makers, angle

grinders, electric drills, refrigerators, fans,

self priming pumps, rice cookers, electric blankets, LED light boxes, etc. are included.

Optional solar photovoltaic panels ava ilable in two specifications A 12V300W solar PV panel requires approximately 7.5 hours to fully charge,while a 12V450W solar PV panel takes about 5 hours to complete charging.

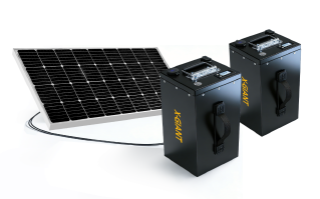

One-to-many offers better cost effectiveness
A solar panel with multiple cells operates on a rotating battery system,enabling multi-functional charging,cost-effectiveness, and space-saving operation without occupying additio nal space.
