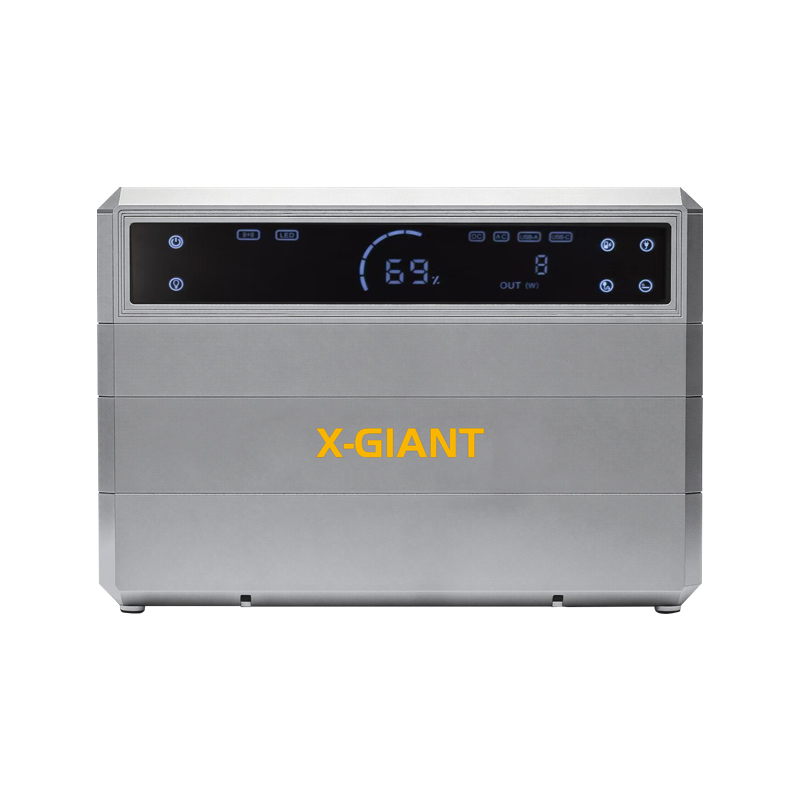

1.5kWh Portable Energy Storage Power Supply

1.5kWh Portable Energy Storage Power Supply

Tags:

Description



Introduction

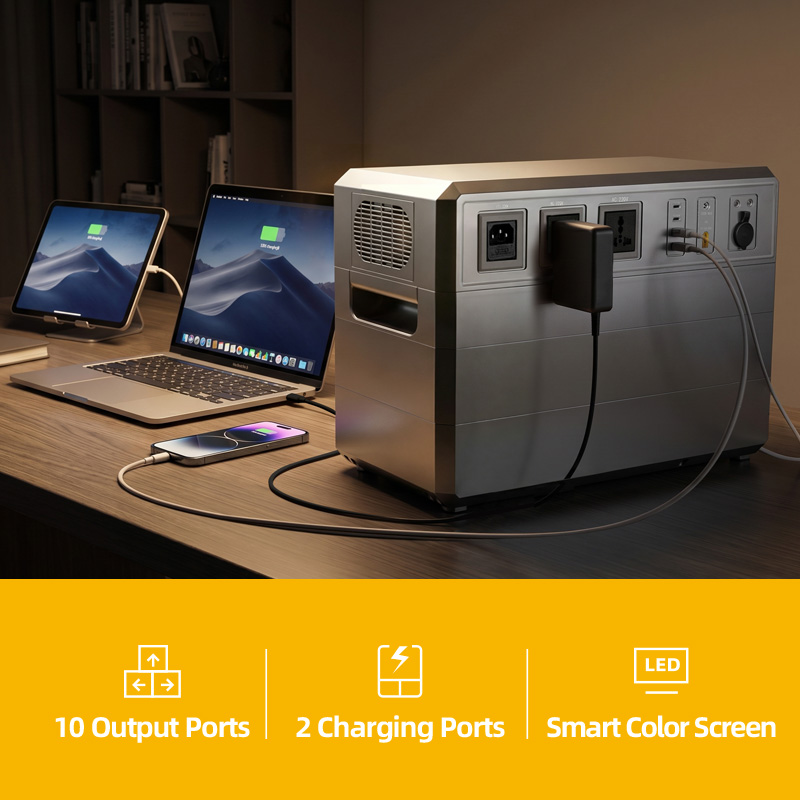

2000W High Power, No Power Reduction for Multi-port Simultaneous Charging

Support simultaneous charging of multiple devices, mobile phones, computers, etc. can be fully charged quickly at the same time, one unit meets the

power needs of multiple devices.

More Efficient and Practical with Bidirectional Inverter

Equipped with bidirectional inverter to realize efficient bidirectional conversion

of AC and DC, direct utility charging without external adapter, more flexible

charging mode and lower energy loss.

Intelligent Dual-fan Silent Heat Dissipation Safe and Energy-saving

Intelligently start the fan according to actual temperature to avoid power consumption during full operation; low-noise silent operation, achieving efficient temperature control and safety protection at the same time.

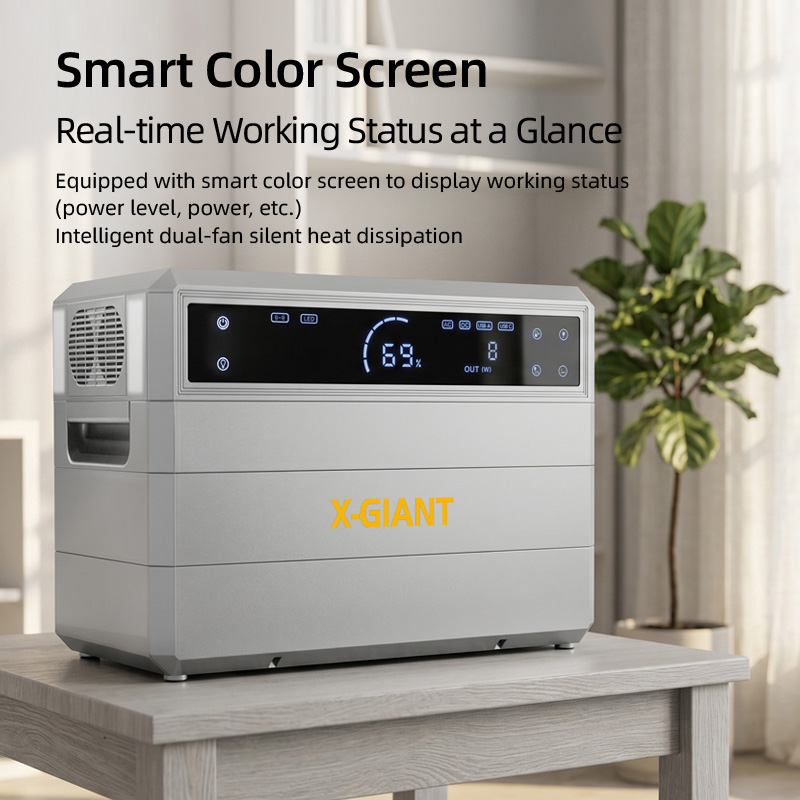

Intelligent Color Screen + LED Lighting Status at a Glance

Equipped with intelligent color screen to display working status (power, power,

etc.), built-in high-brightness LED lighting to meet night or low-light environment needs.

Application scenarios

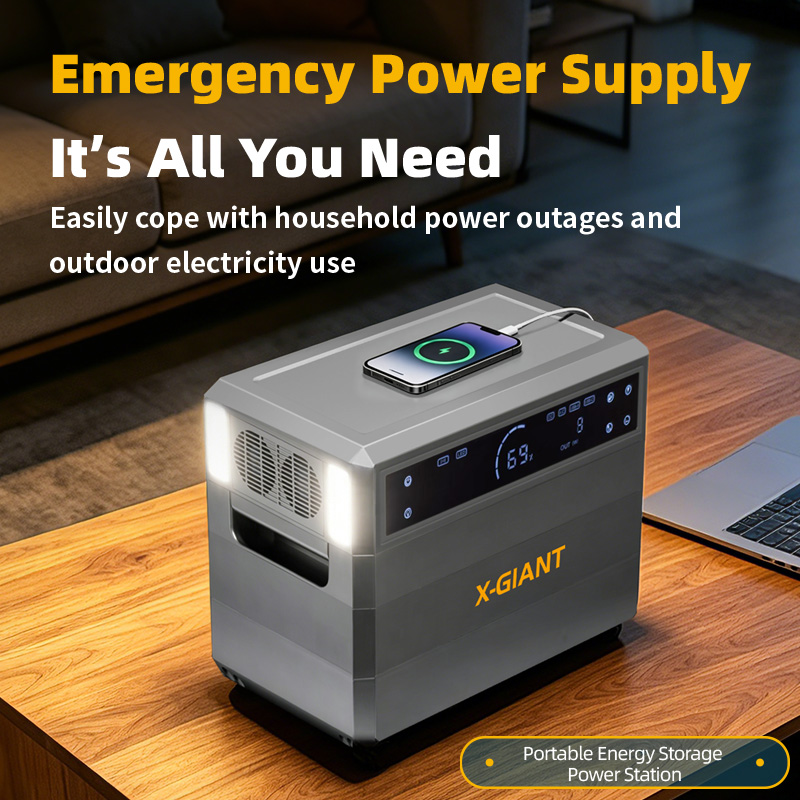

Home emergency backup power
Self-driving travel
Camp
Outdoor electricity usage

Function configuration

1.AC220V Input

2. AC220V Output

3. Type-c*2

4. Solar Charging Port

5. DC12V Output

6. Car Charger

7. Fast Charging Port

8. USB*2

9.Large Screen Display

10. Bidirectional Exhaust Heat Dissipation

Specifications

Input Technical Parameters
Nominal Voltage	51.2V
Nominal Capacity	30Ah
Nominal Energy	1536wh
Voltage Range	40V~58.4h
Battery Type	16S LiFePO4
Battery Low Voltage Alarm	43V
Battery Low Voltage Protection	40V
Battery Over Voltage Protection	60V
DC Charging Interface	1.DC5521 10~45V/10A 2.XT60 3.IEC AC Input Interface
Quiescent Current in Off Mode	≤30uA
Fan Working Mode	Intelligent temperature control, fan starts ≥33℃, stops ≤31℃
Cooling Fan	2个
Positive/Negative Terminal	Fixed by screw tightening

Output Protection
Over-temperature Protection	≥70℃，output shut off
Output Short Circuit	Automatic recovery for light short circuit output shut off after 3s for long short circuit
Overload Protection	Automatic shutdown

Other Parameters
Protection	Low voltage, over voltage, over temperature, overload, short circuit protection
Operating Temperature	-20℃~70℃
Operating Humidity	10~90%RH
Storage Temperature	-40℃~60℃
Storage Humidity	10~95%RH
Operating Altitude	≤3000m (derating above 1000m)
Product Dimensions	L460mm/W250mm/H335mm
